Hawke 501/423 Cable Glands



Hawke 501/423 cable gland provides two independent seals on non-armoured elastomer and plastic insulated cables. The first cable seal is a flameproof seal on the inner or outer cable sheath, with an additional IP seal on the outer sheath. The Hawke cable gland type 501/423 is dual certified Exd and Exe and is suitable for installation in Zone 1 (21) and Zone 2 (22) hazardous areas.

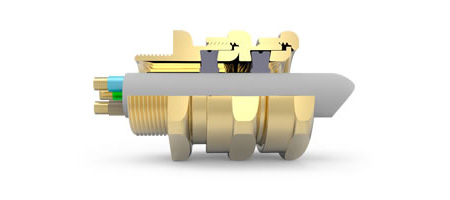

Pictured: Hawke 501/423 Hazardous Area Cable Gland

Hawke 501/423 Cable Gland Features

• Provides superior cable retention to standard unarmoured cable glands, with a seal at two independent points
• When used in Increased Safety applications, this cable gland may be used with braided cable where the braid and the outer sheath pass into the enclosure. The braid must then be suitably terminated inside the enclosure
• Manufactured in Brass (standard), Nickel Plated Brass, 316 Stainless Steel or Aluminium
• Brass NPT entries are nickel plated as standard





Hawke 501/423 Hazardous Area Cable Gland Specifications

Size Ref	Entry Thread Size 'F'	Cable Acceptance Details		'G'	Hexagon Dimensions
		Outer Sheath 'B'
		Standard Seal	Alternative Seal		Across Flats	Across Corners
Os	M20²	3.2mm-8mm	-	40mm	24mm	26.5mm
O	M20²	6.5mm-11.9mm	-	40mm	24mm	26.5mm
A	M20	10mm-14.3mm	9mm- 13.4mm	40.4mm	30mm	32.5mm
B	M25	13mm-20.2mm	9.5mm- 15.4mm	44.3mm	36mm	32.9mm
C	M32	19.5mm- 26.5mm	15.5mm- 21.2mm	47.2mm	46mm	50.5mm
C2	M40	25mm- 32.5mm	22mm- 28mm	49.5mm	55mm	60.6mm
D	M50	31.5mm- 44.4mm	27.5mm- 34.8mm	72.5mm	65mm	70.8mm
E	M63	42.5mm- 56.3mm	39mm- 46.5mm	64.8mm	80mm	88mm
F	M75	54.5mm- 68.2mm	49.5mm- 58.3mm	68mm	95mm	104mm
G	M80	67mm- 73mm	-	68mm	106.4mm	115mm
H	M90	67mm- 77.6mm	-	68mm	115mm	130mm
J	M100	75mm- 91.6mm	-	68mm	127mm	142mm
