Hawke Hazardous Area Cable Glands

Flameproof Exd & Increased Safety Exe Hawke Cable Glands

ATEX & IECEx - Zone 1, Zone 2, Zone 21 & Zone 22

Hawke 501/421 Cable Glands



Hawke 501/421 cable gland provides a seal on the outer cable sheath and is intended for use on non-armoured elastomer and plastic insulated cables. The cable gland is dual certified Exd and Exe and is suitable for installation in Zone 1 (21) and Zone 2 (22) hazardous areas.

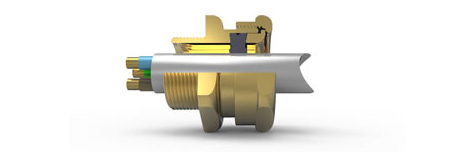

Pictured: Hawke 501/421 Hazardous Area Cable Gland

Hawke 501/421 Cable Gland Features

• When used in Increased Safety applications, the Hawke 501/421 cable gland may be used with braided cable where the braid and the outer sheath pass into the enclosure. The braid must then be suitably terminated inside the enclosure
• Manufactured in Brass (standard), Nickel Plated Brass, 316 Stainless Steel or Aluminium
• Brass NPT entries are nickel plated as standard
• Cable glands are marked with ATEX/IECEx and c CSA us certification information as standard





Hawke 501/421 Hazardous Area Cable Gland Specifications

Size Ref	Entry Thread Size 'F'	Cable Acceptance Details		'G'	Hexagon Dimensions
		Outer Sheath 'B'
		Standard Seal	Alternative Seal		Across Flats	Across Corners
2K	M16	3.2mm- 8mm	-	23.5mm	19mm	21.2mm
Os	M20²	3.2mm- 8mm	-	23.8mm	24mm	26.5mm
O	M20²	6.5mm- 11.9mm	-	23.8mm	24mm	26.5mm
A	M20	10mm- 14.3mm	8.5mm- 13.5mm	24.8mm	30mm	32.5mm
B	M25	13mm- 20.2mm	9.5mm- 15.4mm	25.8mm	36mm	39.5mm
C	M32	19.5mm- 26.5mm	15.5mm- 21.2mm	28.2mm	46mm	50.5mm
C2	M40	25mm- 32.5mm	22mm- 28mm	29.5mm	55mm	60.6mm
D	M50	31.5mm- 44.4mm	27.5mm- 34.8mm	40.4mm	65mm	70.8mm
E	M63	42.5mm- 56.3mm	39mm- 46.5mm	38.2mm	80mm	88mm
F	M75	54.5mm- 68.2mm	48.5mm- 58.3mm	40.5mm	95mm	104mm
G	M80	67mm- 73mm	-	41mm	106.4mm	115mm
H	M90	67mm- 77.6mm	-	41mm	115mm	130mm
J	M100	75mm- 91.6mm	-	41mm	127mm	142mm
