Captrad GRP Cable Tray System Approved At The Port Of Liverpool



Cable Containment

Captrad GRP Cable Systems



T&D have supplied a range of GRP cable trays to the Port of Liverpool in cable tray widths 100mm, 200mm and 300mm. T&D, with the support of manufacturers Captrad, supplied the tray in 3m lengths to site, ex stock and overnight for an urgent high voltage cable installation at the port.

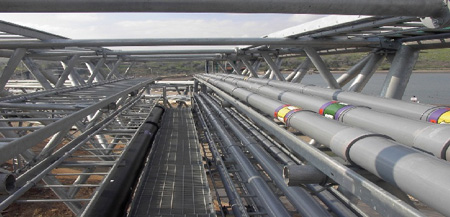

Pictured: Port of Liverpool

Port of Liverpool

Captrad supply a wide range of GRP Cables Trays and GRP Cable Ladders all of which can be supplied in various sizes. Captrad Cable Trays can be supplied either as the tray or with the uniquely designed ‘Click-fit-Lid’. All GRP cable trays are produced in 3m lengths and can easily be fabricated on/off site.

Pictured: Captrad GRP Cable Tray

Captrad GRP Cable Tray

Captrad GRP Cable Tray for LV-HV Cable Containment
Advantages
  • Corrosion Resistant
  • Strong and Lightweight
  • Non-Conductive
  • Impact Resistant
  • Dimension Stablility
  • UV Stability
  • Click Fit Lid System
  • Easy to fabricate
  • Excellent Working Temperatures
Markets
  • Alternative Energy
  • Industrial
  • Rail/Underground
  • Off Shore
  • Marine
  • Construction
  • Chemical Plant
  • Water Industry


GRP Cable Tray

Captrad GRP cable trays are normally electrical non-conductive but for those applications with risk explosive atmospheres an anti-static version is available to order. All cable trays have a bespoke click fit lid.

Captrad GRP Cable Trays At A Glance
  Standard Alternative
Material ISO Polyester Resin
Fire Rating Class 2 Fire Rated Modar
Length 3000mm 6000
Width 50mm - 300mm
Type Slotted Plain
Fittings All Stainless Steel
