Ellis Patents Emperor Trefoil Cable Cleats Supplied To The Murchison Platform In The North Sea

By Chris Dodds on 19th July, 2012

Follow @ThorneanDerrick

Ellis Patents Emperor Cable Cleats

Ellis Patents Stainless Steel Cable Cleats



Thorne & Derrick have supplied 400 Ellis Patents Emperor Cable Cleats to the CNR operated North Sea Murchison Oil Field.

The CNR International owned and operated Murchison field is located in the Northern North Sea Block 211/19, north of Aberdeen in the East Shetland Basin, straddling the United Kingdom/Norwegian sector median line. The Murchison platform is a conventional steel jacket with a 33 well slot capacity.

Oil off-take is to Sullom Voe and gas is exported into the FLAGS line (Far North Liquids and Gas System). The 100% owned and operated Playfair field to the north of Murchison produces back to the Murchison Platform via an extended reach well.

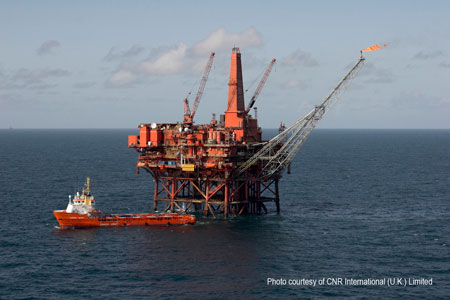

Pictured: The Murchison Platform

The Lead Electrical Engineer selected Emperor cable cleats ER44-50 to provide effective containment of single core EPR 6.6kV cables cleated in trefoil formation.

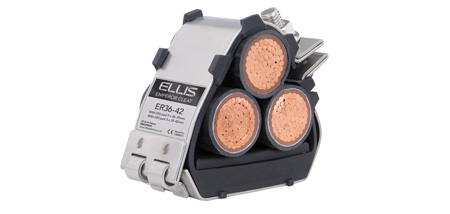

Pictured: Ellis Patents Emperor Trefoil Cable Cleat

Ellis Patents Emperor Stainless Steel Cable Cleats

The Emperor cable cleat is a high specification cable cleat for highest short-circuit withstand performance when clamping, retaining and cleating low and high voltage cable powers, including LV, 6.6kV, 11kV, 33kV and Triplex cables in hazardous areas.

Ellis Patents Emperor cable cleats are used as trefoil cable cleats (ES) for installing single-core cables in trefoil formation, installing single-way cables (ES) and multi-core power cables.

Manufactured from 316 grade stainless steel for cleating cables in hazardous area locations including marine, offshore, oil, gas and petrochemical industry.

LSF zero halogen protection liners are included within the standard cable cleat - Emperor cleats accept up to 128mm in trefoil cable formation and up to 150mm in single way cable formation.

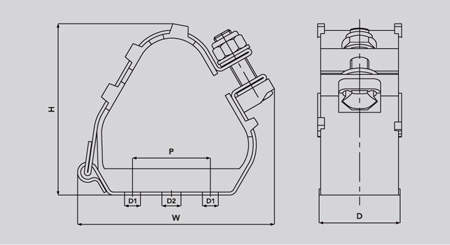

Ellis Patents ER44-50 Emperor Trefoil Cable Cleat

Part Number	Cable Range		Dimensions					Weight
	Min Dia	Max Dia	W	H	D	P	Fixing Holes
Ellis Patents ER44-50	44 mm	50 mm	130 mm	117 mm	54 mm	50 mm	2 x M10 + 1 x M12	630g





Video Playlist: Ellis Patents Cable Cleats
