CSD In The Front Line Of Defence Against Flooded Substations

By Chris Dodds on 12th February, 2013

Follow @ThorneanDerrick

CSD Duct Seals & Duct Sealing

CSD RISE Duct Sealing System - Flood Defence



In recent years we have seen how the flooding of just a single electricity substation can cause a loss of power for thousands of homes and businesses. Flooding of LV HV substations is one of the key threats identified by energy firms during a review of climate change and the impact it could have on their business.

The distribution network operators (DNO's) have agreed to ensure protection of their existing infrastructure assets and to complete flood resilience projects costing more than £109 million before 2015. This flood protection program is being monitored by the regulator, OFGEM, who plans to review progress in July 2012.

CSD RISE Cable Duct Sealing Systems range of flood protection products, which include the RISE Duct seal system are already widely adopted throughout the energy sector providing high levels of watertight integrity for cable ducts or where services enter buildings. CSD are working very closely with many of the network operators helping to meet the requirements of the program and to ensure their assets are fully protected.

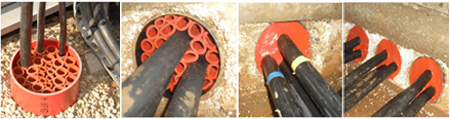

CSD RISE RAPID cable duct sealing system provides an effective and simple solution protecting against flood and gas ingress. It consists of only two components: Nofirno sealant, a high quality silicone based sealant and Nofirno rubber multi sleeves. The completed duct seal will prevent the migration of dangerous gases and provide flood protection for more than 50 years.

CSD RISE RAPID Duct Sealing Benefits

• Ensures DSEAR gastight compliance even in heavily filled cable ducts
• Quick ad easy to install in both horizontal & vertical ducts. Multi-sleeves make packing free space even easier
• Easy re-entry for adding, removing or replacing cables
• Ensures ATEX & WIMES compliance
• Can seal ducts in some running water conditions when using our SLIPSIL Waterstop or Aquastop system
• Tested to prove no deterioration in performance for more than 50 years
• Provides long term support to cables
• No frame required and can be installed in any sized or shaped opening
• Resistant to Methane, Hydrogen Sulphide and Chlorine
• Resistant to submersion in petrol, diesel and transformer oils
• Suitable for trefoil and large power cables
• Provents rodent ingress
• Provides flood protection - tested from front and back of seal

CSD RISE RAPID Duct Seal kits

Requirement	Size	Order Code
Gastight / Watertight	1 KIT = 100mm DUCT 2 KITS = 150mm DUCT	RISEDUCT-R
Gastight / Watertight	125mm DUCT	RISEDUCT125-R
Gastight / Watertight	150mm DUCT	RISEDUCT150-R
Gastight / Watertight	160mm DUCT	RISEDUCT160-R
Gastight / Watertight	200mm DUCT	RISEDUCT200-R
Gastight / Watertight	225mm DUCT	RISEDUCT225-R
Gastight / Watertight	250mm DUCT	RISEDUCT250-R
Gastight / Watertight	300mm DUCT	RISEDUCT300-R
