Craig & Derricott Isolators & Switch Disconnectors

LUL Section 12 isolator. 40A 6 pole finished Copon grey. Die cast enclosure lockable in On & Off.

LUL Section 12 Switch Disconnector.

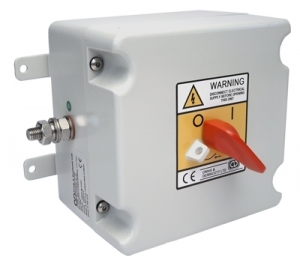

Craig & Derricott Isolator DCG406EBLUL10

• 6 pole + 2 Fully rated E/B Auxiliaries
• Ratings to BS EN 60947-3
• Ithe 40A, AC23A : 15kW at 415V
• Captive lid fixing screws with security head
• 2 x M20 tapped cable entries (1 off plugged)
• Enclosure material - Aluminium (LM6)
• Padlocking in both 'Off' & 'On' positions
• Sealing to IP65
• Paint Finishes -
• Copon 35TR or 38TR systems
• Colour - Light Grey (RAL7035)
• Supplied with pre-finished steel mounting brackets
• Padlocking cast lever
• Positive break contacts


T&D are Link-up Registered and Approved Vendors to Network Rail and TfL London Underground (LU).

Craig & Derricott Isolator DCG406EBLUL10 LU Section 12 Isolators Switch Disconnectors LUL
