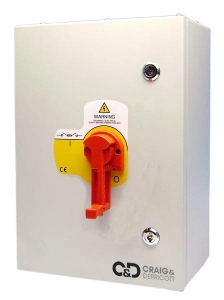

Craig & Derricott Isolator 3 Pole DCG1003LUL

Craig & Derricott Isolators & Switch Disconnectors

LUL Section 12 isolator. 100A 3 pole + switched neutral. Sheet steel enclosure lockable in Off.

LUL Section 12 Switch Disconnector.



















Craig & Derricott Isolator DCG1003LULCraig & Derricott

  • 3 pole + switched neutral
  • Ratings to BS EN 60947-3
  • Ithe 100A, AC23A : 40kW at 400V
  • Removeable gland plates on top & bottom of enclosure
  • Box Size 2
  • Enclosure material - Sheet steel
  • Padlocking in ‘Off’ position. (Padlocking in 'Off' & 'On' option)
  • Sealing to IP65
  • Paint Finishes -
  • Copon 35TR or 38TR systems
  • Colour - Light Grey (RAL7035)
  • Padlocking cast lever
  • Positive break contacts


Link-Up

T&D are Link-up Registered and Approved Vendors to Network Rail and TfL London Underground (LU).

Adobe

Craig & Derricott 100Amp Section 12 LUL Isolators - DCG1003LUL
