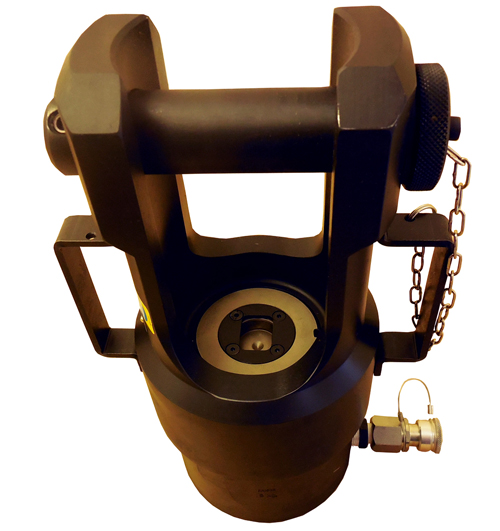

Cembre RHU520 Hydraulic Crimp Presshead

By on 20th January, 2014

Follow @ThorneanDerrick

Cembre Crimping & Cutting Tools - RHU520 Crimp Head

T&D are distributors for the complete range of Cembre Cable Crimping Tools.

The Cembre RHU520 Hydraulic Crimp Head has a quick automatic coupler for connection to a hydraulic pump with a working pressure of 700bar maximum. Cembre adapter AU230-130C is available as an optional extra to enable the RHU520 crimp presshead  to accept the semi-circular slotted dies common to most 130kN crimping tools.



Cembre RHU520 Hydraulic Crimp Head Specifications

Crimping Force - 520 kN

Max Operating Pressure - 700 bar

Length - 306mm

Width - 200mm

Weight - 18kg



Cembre RHU520 Hydraulic Crimp Head Main Applications

Lugs & Splices - 1200sqmm

HV Overhead Lines - 630sqmm



Cembre Hydraulic Crimping Heads are available with die sets for use upto 1200sqmm and can be used with various power units (Cembre PO7000 footpump or Cembre B70M-P24 battery powered pump). Cembre crimp tool heads are available with removable die-holders when installing cable splices during cable jointing.

Cembre crimping tools are always the first choice of the electrical contractor and cable jointer for ease of use, reliability and versatility. This includes Cembre hydraulic, ratchet and battery crimping tools.







Video: Cembre RHU520 Hydraulic Crimp Presshead

Cembre Catalogue - Cembre RHU520 Hydraulic Crimp Presshead

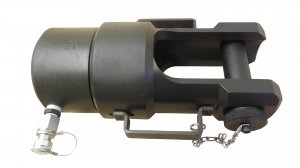

Cembre RHU520 Hydraulic Crimp Presshead
