Cembre HP4 Mechanical Crimping Tools With National Grid Approval

By on 28th February, 2014

Follow @ThorneanDerrick

Cembre Cable Crimping & Cable Cutting Tools.

T&D are an Approved Vendor to National Grid UK of Cembre Cable Crimping & Cutting Tools.

T&D have supplied several National Grid crews this week with Cembre tools for working on 400kV underground cabling projects - the tools will enable the cutting and crimping of power cables from 0.25sqm-400sqmm.

Cembre Ratchet Tools are used for crimping power and control cables using red, yellow and blue insulated terminals and connectors.

Cembre Ratched Controlled Tooling For Crimping Insulated Connectors

Cembre HP4 crimping tools are manual mechanical tools with a ratchet mechanism that prevents the handles from opening again before reaching the ratchet. Cembre HP4 ratchet crimping tools have a positioning device to reduce the operator’s effort and facilitate proper crimping of the conductor.

The Cembre HP4 tools have 3 different jaw adjustments for crimping:

1. Strong
2. Medium
3. Light

Cembre HP4 crimp tools are designed for easy use. At the end of the crimping the outer surface of the conductor is automatically stamped with the following crimping code: one point for red conductor sizes from 23 to 15 AWG.



Cembre HP4 Crimping Ratchet Tool Range:

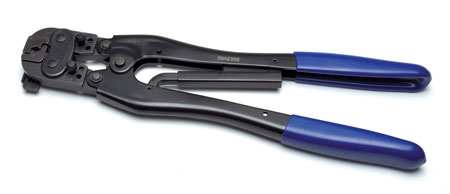

1. Cembre HP4-B Crimp Tool

• Crimp Tool Colour: Blue
• Width: 3.15 inches
• Length: 10.43 inches
• Weight: 1.1Ibs
• Type of action: Crimp
• Material (body): Special Steel
• Material (moulded): Soft PVC

​

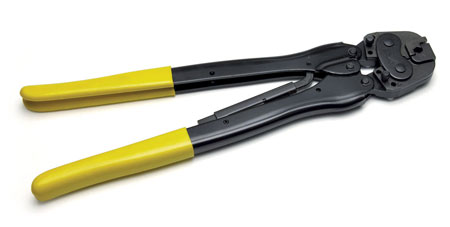

2. Cembre HP4-G Crimp Tool

• Crimp Tool Colour: Yellow
• Width: 4.13 inches
• Length: 12.6 inches
• Weight: 1.79 inches
• Type of action: Crimp
• Material (body): Special Steel
• Material (moulded): Soft PVC

​

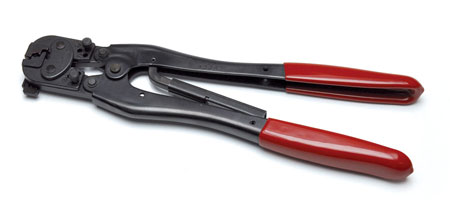

3. Cembre HP4-R Crimp Tool

• Crimp Tool Colour: Red
• Width: 3.15 inches
• Length: 10.43 inches
• Weight: 1.1Ibs
• Type of action: Crimp
• Material (body): Special Steel
• Material (moulded): Soft PVC

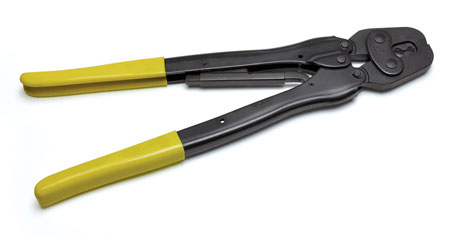

4. Cembre HP4-C10 Crimp Tool

• Crimp Tool Colour: Yellow
• Width: 4.13 inches
• Length: 12.8 inches
• Weight: 1.61Ibs
• Type of action: Crimp
• Material (body): Special Steel
• Material (moulded): Soft PVC

Youtube Video Playlist: Cembre Cable Crimping & Cable Cutting Tools

Cembre HP4 Crimping Ratchet Tools
