Cembre ECW-H3D Hydraulic Crimp Head 630sqmm (Presshead)

By on 20th January, 2014

Follow @ThorneanDerrick

Cembre Crimping & Cutting Tools.

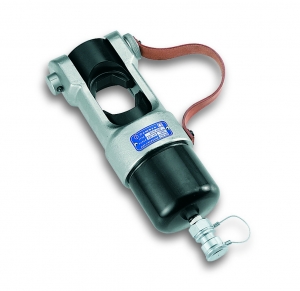

The Cembre ECW-H3D Hydraulic Crimp Head comes complete with a quick automatic coupler for connection to a hydraulic pump with a maximum working pressure of 700 bar. Cembres ECW-H3D crimping head is the cable jointers standard LV-HV crimping tool.

The Cembre ECW-H3D crimp head can be modified to accept semi-circular die sets. A series of DIN compression dies and dies for cutting copper, aluminium, aldrey and typical overhead line conductors are also available to suit the Cembre ECW-H3D presshead. Cembre ECW-H3D crimp head has a crimp force of 230kN and weighs 5.5kg.

Cembre ECW-H3D Hydraulic Crimp Head Presshead Capability

LV Lugs & Splices up to 630sqmm

HV Lugs & Splices up to 630sqmm

Insulated Terminals up to 300sqmm C Sleeve

C Tap Connectors up to 240sqmm

For more information Click Here: Cembre ECW-H3D Hydraulic Crimp Head 630sqmm



Video: Cembre ECW-H3D Hydraulic Crimp Head (Presshead) 630sqmm





Catalogue: Cembre - Hydraulic Tools, Mechanical Tools, Crimping Tools, Cable Cutters

Cembre ECW-H3D Hydraulic Crimp Head 630sqmm (Presshead)

Category:  Cable Crimping & Cutting Tools
