Cembre Battery Crimping Tools For Power Cables

By Chris Dodds on 11th February, 2014

Follow @ThorneanDerrick

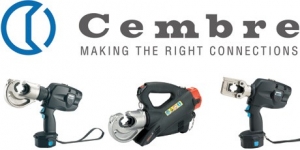

Cembre Battery Crimping Tools, Complete Range

Cembre battery crimping tools utilise Lithium-Ion batteries increasing labour productivity, reducing labour costs and due to the ergonomic design reduce workplace related injuries.

Cembre battery crimping tools provide a fast crimp cycle for high volume regular use crimping applications. Cembre provide a complete matched crimping system - Cembre crimp tools, Cembre die sets and Cembre connectors for LV HV power, control and distribution cables. The ergonomic design of Cembre battery crimping tools allow for single-hand use and reduced operator fatigue to enhance workplace safety.

Battery powered cable crimping and cutting tools significantly reduce muscle exertion and worker fatigue providing advanced Health & Safety for cable crimping and cutting procedures compared to ratchet and hydraulic type tools. Watch below video.

Cembre battery crimping tools provide a controlled crimping cycle - a microprocessor controls the crimping tool operation and automatically cuts out the motor on completion of the crimp to provide a reliable electrical connection.

The Industry Standard Battery Crimping Tool...

Battery Crimping Tool - Cembre B131-C
HV & LV Lugs up to 400sqmm
HV & LV Splices up to 240sqmm
Insulated Terminals up to 240sqmm
C Sleeves, C Tap Connectors up to 185sqmm
Cembre B131-C Dimensions : Length 420mm, Height 250mm, Width 100mm, Weight 7.4kg - 130kN Crimp Force


Battery Operated Crimping Tool - Cembre B131-C -
• 14.4 V cordless hydraulic crimping tool, lightweight and balanced for single hand operation. Cembe tool will accept all semi-circular slotted dies, common to most 130 kN crimping tools
• Cembre B131-C tool features a double speed action: a fast advancing speed for rapid approach of the dies to the connector and a slower more powerful speed for crimping
• For ease of operation and comfort of the operator the Cembre tool head can be fully rotated through 180 degrees
• The tool is powered by 14.4 V d.c. NiCd battery
• A balanced tool for optimum control
• Quiet in operation with very little vibration
• Lightweight construction enables the operator to hold the tool in one hand and to position the connector with the other hand
• The operating buttons, crimp/release, are mechanically interlocked, to prevent accidental operation of the tool
• A microprocessor controls the tool operation and automatically cuts out the motor, on completion of the crimping operation, saving energy and extending battery life
• The residual battery capacity is automatically displayed after every cycle
• Fitted with an integral socket, for connection to a 12 V dc external power supply/vehicle battery
• The tool is provided with a maximum pressure valve

Cembre are world leaders in the manufacture of copper and aluminium cable connectors, splices and lugs for LV-HV cable jointing and termination. Cembre tools cut and crimp underground cables and overhead lines - hydraulic, ratchet and battery operated tools. Cut or crimp EPR, PILC, XLPE, PVC insulated cables with copper or aluminium conductors, lead sheath, steel wire armour ( SWA) or steel wire braid (GSWB). Also - ABC, AAAC and ASCR conductors.

T&D UK are Main Distributors of the complete Cembre range.


Video Demonstration - Cembre B131-C Hydraulic Battery Crimping Tools

Cembre B131-C Cordless Hydraulic Battery Powered Crimping Tools Manual
