Cembre B131-C Cordless Hydraulic Battery Powered Crimping Tool

By on 20th January, 2014

Follow @ThorneanDerrick

Cembre Crimping & Cutting Tools.

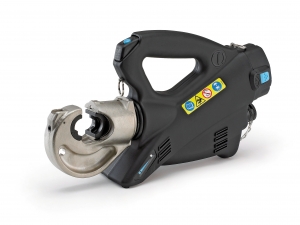

The Cembre B131-C hydraulic battery crimping tool is a 14.4V cordless two speed battery crimping tool which is ideal for panel building and electrical contracting applications. The lightweight and balanced tool enables the operator to use the Cembre B131-C battery crimping tool with one hand and to position the cable crimp with the other. The Cembre B131-C hydraulic crimping tool is easy and comfortable to use with a fully rotated through 180 degrees. The Cembre B131-C battery powered crimping tools are available to protect electrical engineers and cable jointers against accidental brush contact with live energised conductors.

Cembre cable crimping solutions provide a matched crimping system of crimping tools, die sets and electrical connectors. The cordless Cembre B131-C battery crimping tool comes with a carrying case to house the Cembre die sets.

Cembre B131-C Cordless Hydraulic Battery Crimping Tool Features:

• Length 420mm
• Height 250mm
• Width 100mm
• Crimping Force 130kN
• Battery 14.4V 3.0Ah
• Weight  7.1kg

Cembre are world leaders in the manufacture of electrical crimping, compression connectors and associated cable tooling for overhead and underground cable systems - this includes hydraulic, ratchet and battery operated cable crimping and cable cutting tools to suit low (LV) cables, high (HV) cables and overhead power lines. Overhead lines, power, control, instrumentation and telecomms cables can be cut or crimped with Cembre tools - this covers EPR, PILC, XLPE, PVC insulated cables with copper or aluminium conductors, lead sheath, steel wire armour ( SWA) or steel wire braid (GSWB).

For mor information Click Here: Cembre Cordless Hydraulic Battery Powered Crimping Tools

See more images on the T&D Cembre Flickr Set & the T&D Cembre Pinterest Board



Video: Cembre B131-C Cordless Hydraulic Battery Powered Crimping Tool

Cembre B131-C Cordless Hydraulic Battery Powered Crimping Tool

Category:  Cable Crimping & Cutting Tools
