CCG Cable Terminations VariTex Compression Gland For Copper Tape Vsd Cable

By on 27th January, 2014

Follow @ThorneanDerrick

Cable Accessories

CCG VariTex Zone 1 Zone 2 Zone 21 & Zone 22

Ex e II Ex tD A21 IP66/68

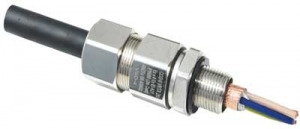

CCG Cable Terminations VariTex Compression Gland For Copper Tape Vsd Cable

CCG cable terminations are recognised as a major manufacturer of cable glands and junction boxes in the world, employing over 200 dedicated people. CCG place emphasis on the users input to enhance designs.

CCG products are also known for their time and wastage saving fatures. The CCG Cable terminations simplicity of their "Captive Cone" and "Built in Seals" concepts means that no matter where in the world the CCG products are being installed, the simplest of instructions will ensure that all the parts have been correctly fitted.



CCG VariTex Hazardous Area Zone 1 & Zone 2 Compression Gland Features and Benefits

• Hazardous Area glands for use indoor, outdoor and hazardous areas
• Two piece handling, no loose parts
• Independent tightening of coil induces an inspectable positive contact on copper tape
• Factory fitted captive elastomeric seal for built in safety
• Seals on the outer sheath of the cable to IP 66/68
• Precision manufactured from high quality brass (nickel plated) or stainless steel
• VariTex glands come complete with brass locknut and sealing gasket

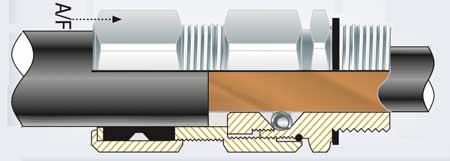

CCG VariTex Hazardous Area Compression Cable Gland Technical Data

Type	VariTex (VRTX)
Gland Material	Brass (Nickel Plated), Stainless Steel (on request)
Seal Material	Thermoset Elastomer
Cable Type	Copper Tape VSD (Variable Speed Drive)
Sealing Area	Compression Seal and O-ring
Optional Accessories	Adapter, Earth Tag, Locknut, Reducer, Serrated Washer and Shroud



YouTube Video Playlist: CCG Cable Terminations Hazardous Area Cable Glands

CCG VariTex Zone 1 & 2 Zone 21 & 22 Hazardous Area Cable Glands

CCG Cable Terminations VariTex Compression Glands
