CCG Cable Terminations EX Corrosion Guard Cable Glands For Steel & Aluminium Armoured Cable

By on 27th January, 2014

Follow @ThorneanDerrick

Cable Accessories

CCG EX Corrosion Guard Ex d IIC, Ex e IIC, Ex nR IIC, Ex tb IIIC

CCG Cable Terminations Captive Component Gland for use on armoured cable in hazardous and corrosive areas.

ATEX, IEC, Ex d IP66/68

CCG cable terminations are recognised as a major manufacturer of cable glands and junction boxes in the world, employing over 200 dedicated people. CCG place emphasis on the users input to enhance designs.

CCG products are also known for their time and wastage saving fatures. The CCG Cable terminations simplicity of their "Captive Cone" and "Built in Seals" concepts means that no matter where in the world the CCG products are being installed, the simplest of instructions will ensure that all the parts have been correctly fitted.



CCG EX Corrosion Guard Ex d Captive Component Glands Features and Benefits

• EX cable glands for use in highly corrosive and wet areas.
• Cable Gland is precision manufactured from high quality brass (nickel-plated).
• Factory fitted captive elastomeric seals for built-in safety™.
• The screw-on Corrosion Guard™ is manufactured from non-corrosive material to protect the armour and metal parts of the gland.
• CCG Corrosion Guard screws onto the gland body and seals over the outer sheath of the cable giving an IP68 and deluge proof seal.
• Cable gland comes complete with polypropylene sealing gasket and an end cap / safety gauge for correct gland selection.

CCG EX Corrosion Guard Hazardous Area Cable Gland Technical Data

Type	EX Corrosion Guard
Gland Material	Brass (Nickel Plated)
Seal Material	Thermoset Elastomer
Cable Type	Steel Wire Armour, Aluminium Armour
Armour Clamping	Captive Cone and Cone Ring
Sealing Area	Inner and Outer Sheath and Total Enclosure Of Gland
Optional Accessories	Adapter, Earth Tag, Locknut, Reducer, Serrated Washer and Shroud
Corrosion Guard Material	Glass Reinforced Polyester Compound / PBT



YouTube Video Playlist: CCG Cable Terminations Hazardous Area Cable Glands

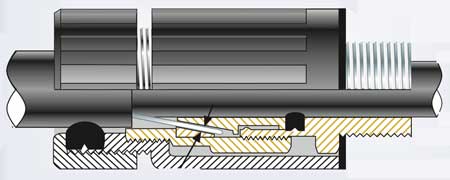

CCG EX Corrosion Guard Ex d Hazardous Area Cable Glands

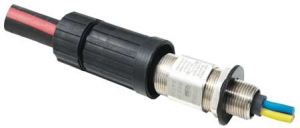

CCG Cable Terminations EX Corrosion Guard Cable Glands
