CCG Cable Terminations E1EX-QS Quick Stop Injection Resin Barrier Glands For Armoured Cables

By on 28th January, 2014

Follow @ThorneanDerrick

CCG Cable Terminations E1EX-QS Quick Stop Injection Resin Barrier Glands For Armoured Cables

Cable Accessories

CCG Cable Terminations Cable Glands

CCG E1EX~QS Ex d IIC, Ex e IIC, Ex nR IIC, Ex tb IIIC

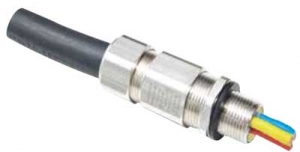

CCG Cable Terminations E1EX~QS Barrier Glands for steel and aluminium armoured cable

ATEX, IEC, Ex d IP66/68

CCG cable terminations are recognised as a major manufacturer of cable glands and junction boxes in the world, employing over 200 dedicated people. CCG place emphasis on the users input to enhance designs.

CCG products are also known for their time and wastage saving fatures. The CCG Cable terminations simplicity of their "Captive Cone" and "Built in Seals" concepts means that no matter where in the world the CCG products are being installed, the simplest of instructions will ensure that all the parts have been correctly fitted.

CCG E1EX~QS Ex d Hazardous Barrier Glands Features and Benefits

E1EX~QS gland for use indoors, outdoors and hazardous areas with unfilled hygroscopic multicore cables
Two part handling, no loose parts
Captive Cone and Cone Ring provides an armour clamp and earth bond for steel wire armour and aluminium armour
Instantly mixed and injection Resin
Resin forms 100% barrier seal around the individual cores of the cable
Prevents gas and moisture transmitting down cable
Prevents explosive gases transmitting down cable

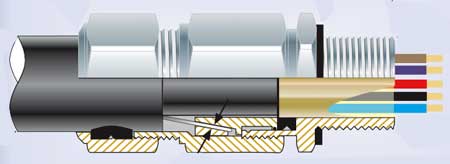

CCG E1EX~QS Ex d Hazardous Barrier Glands

CCG E1EX~QS Ex d Hazardous Area Cable Gland Technical Data

Cable Gland Type	E1EX~QS
Gland Material	Brass (Nickel Plated), Stainless Steel
Seal Material	Thermoset Elastomer, Quick Setting Barrier Resin
Cable Type	Steel Wire Armour, Aluminium Armour
Sealing Area	Inner and Outer Sheath
Optional Accessories	Adapter, Earth Tag, Locknut, Reducer, Serrated Washer and Shroud
Armour Clamping	Captive Cone and Cone Ring

YouTube Video Playlist: CCG Cable Terminations Hazardous Area Cable Glands

CCG E1EX~QS Hazardous Area Cable Glands

CCG Cable Terminations E1EX-QS Corrosion Guard Cable Glands For Steel / Aluminium Armoured Cable - ATEX Hazardous Area Cable Glands from Thorne & Derrick (Power Products)
