CCG A2EX~QS Ex d IIC, Ex e IIC, Ex nR IIC, Ex tb IIIC

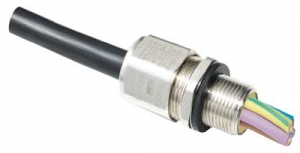

CCG Cable Terminations A2EX~QS Barrier Compression Glands for unarmoured cables

ATEX, IEC, Ex d IP66/68

CCG cable terminations are recognised as a major manufacturer of cable glands and junction boxes in the world, employing over 200 dedicated people. CCG place emphasis on the users input to enhance designs.

CCG products are also known for their time and wastage saving fatures. The CCG Cable terminations simplicity of their "Captive Cone" and "Built in Seals" concepts means that no matter where in the world the CCG products are being installed, the simplest of instructions will ensure that all the parts have been correctly fitted.



CCG A2EX~QS Ex d Barrier Compression Glands Features and Benefits

• Hazardous Area glands for use indoors, outdoors and hazardous areas with unfilled hygroscopic multicore cables
• Resin forms 100% barrier seal around the individual cores of the cable
• Prevents gas and moisture transmitting down cable
• Prevents explosive gases transmitting down cable

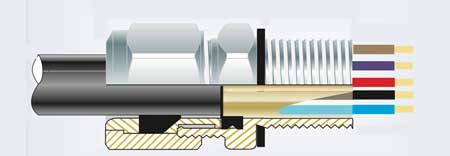

CCG A2EX~QS Ex d Hazardous Area Cable Gland Technical Data

Cable Gland Type	A2EX~QS
Gland Material	Brass (Nickel Plated), Stainless Steel
Seal Material	Thermoset Elastomer, Quick Setting Barrier Resin
Cable Type	Unarmoured
Sealing Area	Outer Sheath and Barrier Chamber
Optional Accessories	Adapter, Earth Tag, Locknut, Reducer, Serrated Washer and Shroud



YouTube Video Playlist: CCG Cable Terminations Hazardous Area Cable Glands

CCG A2EX~QS Hazardous Area Cable Glands



CCG Cable Terminations A2EX-QS Quick Stop Injection Resin Barrier Glands
