Catu Arc Flash Protective Kits 65cal/cm² Supplied To St Fergus Gas Terminal, Scotland

By Chris Dodds on 28th May, 2013

Follow @ThorneanDerrick

CATU Electrical Safety Equipment

Arc Flash Protection

Catu Arc Flash Protective Clothing Kits



T&D have supplied Catu Arc Flash Protective Clothing Kits to electrical engineers working for Land & Marine Project Engineering Ltd at the St Fergus Gas Terminal, Scotland. The arc flash protective clothing is rated up to 65 cal to enable safer working by electrical engineers carrying out maintenance on low and high voltage switchboards and switchgear.

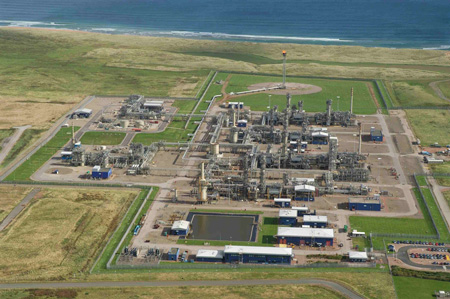

Picture: St Fergus Gas Terminal, Scotland

When electric arc danger exists, heat-resistant clothing must be worn. The arc's characteristics are given by the resistance value of the free arc, expressed in cal/cm² according to NFPA70 E, ASTM standards, and IEC 61482-1-1 or the protection class (1 or 2) with a constrained arc according to IEC 61482-1-2.

The level of arc flash protection needed is determined by the following:

• Maximum fault current value
• Phase/ground rated voltage at the site of the risk
• Distance between the source of the arc and the reception surface
• AC cycle number and the mono or three-phase circuit type
• Location where the arc is produced (confined space)

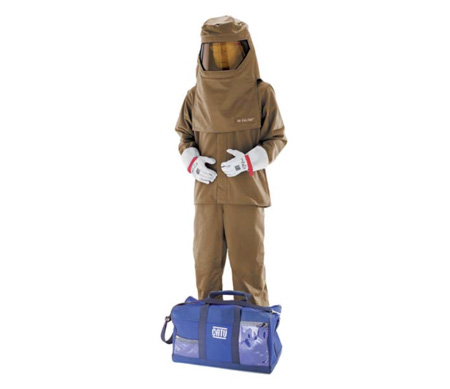

The personal protective clothing needed for workers on the St Fergus Gas Terminal was the CATU 65 cal/cm² arc flash protective kit.

CATU Arc Flash Protective Kits

Reference	Capacity	Weight	Colour
CATU KIT-ARC-25-B	25 cal/cm²	6000	Kaki
CATU KIT-ARC-40-B	40 cal/cm²	6900	Grey
CATU KIT-ARC-55-B	55 cal/cm²	8000	Grey
CATU KIT-ARC-65-B	65 cal/cm²	8000	Camel
CATU KIT-ARC-100-B	100 cal/cm²	8000	Camel



CATU items included in the arc flash protective kits:

• Arc flash protective hood with an integrated face shield
• ABS helmet electrically insulated
• Arc flash protective bib overall
• Arc flash protective coat
• Safety glasses
• Carrying bag for face shield and helmet
• All kit carrying bag

Arc Flash Potential Hazardous Tasks - LV-HV equipment testing, visual and IR (infrared) inspections, manipulation of live cable conductors, switching/racking breakers, installation of LV-HV cables into energised equipment including switchgear, transformers and motors, replacement of LV-HV fuses and links, live underground cable jointing.
