Cable Pulling & Laying Equipment

SEB TCW Cable Hauling Winches





The SEB TCW range of twin capstan, fully enclosed steel canopied cable winches are extremley robust pieces of engineering plant, designed specifically to cope with light/medium cable pulls and other general utility cable pulling. The TCW range is available in 3000kgs and 4000kgs line pull capacities.

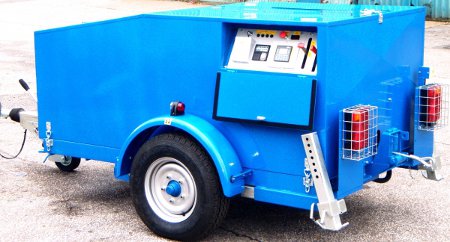

Pictured: SEB TCW Cable Winch

SEB TCW range of cable winches are designed to be simplistic in operation, and thus you will find the winches are very straight forward to maintain and service. The result is a product which is cost effective, will provide many years of service, is easy to operate and simplistic to maintain.



SEB International TCW Cable Winch - Technical Specification

Payout (Approx)	50mtrs/min
Line Pull	12mtrs/min at 3000kgs
Rope Layering	Fully automatic
Features	Operating hour's meter 2 x Emergency stop buttons (winch mounted) 1 x Emergency stop on 5mtr cable (remote) Digital rope meter counter Digital line tension monitor Line tension pre-set facility c/w controlled ramp down when set tension is achieved Demountable steel canopy for major servicing/repair
Engine	17.75kW Lombardini diesel engine, water cooled
Rope Capacity	Up to 1,000mtr x 10mm diameter (Export only)
Line Speed	Fully variable via console mounted control lever
Optional Extras	Trench Boom Winch recording facility c/w mounted printer & removable micro SD card, recording offers cable drum ID, time, length, line pull and setting of maximum overload and print out when that figure is reached.
