CSD Cable Duct Seals: Protection Against Water, Gas and Fire

By Chris Dodds on 29th January, 2013

Follow @ThorneanDerrick

CSD Duct Seals & Duct Sealing

CSD RISE Duct Seal System



CSD RISE Cable Duct Seals are the most extensively specified sealing system to provide effective protection against water, gas and fire. Non-compliant cable duct seals can lead to flood damaged substations and ultimately power black-out.

CSD RISE: The Difference Is Material - will not deflate or crack unlike inflation and mastic based sealing systems.

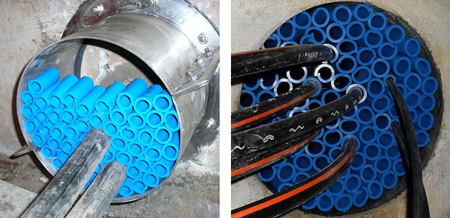

CSD RISE duct seal is a multi-cable and pipe transit sealing system  for cable ducts and building entries that uses individual sleeves rather than the NOFIRNO multi sleeves supplied with our RISE RAPID system.

CSD RISE cable ducting system provides protection against flooding and gas ingress. The ducting system consists of two components: RISWAT rubber insert sleeves and FIWA sealant. The RISWAT sleeves are used to guarantee cable separation and as a backing for the sealant layer. FIWA sealant is a high quality silicone based, fire stopping, water repellent sealant.

The system can also be upgraded to provide up to 4 hours of fire protection in accordance with BS EN1366-3 by exchanging the rubber insert sleeves for the fire rated RISE sleeves.

CSD RISE Cable Duct System Benefits

• Cost effective
• Up to four hours fire protection
• WIMES compliant
• Ensures DSEAR compliance
• High levels of water and gas tightness
• Ease of re-entry for adding cables
• Few components
• No frame required
• Suitable for Trefoil cables
• Age tested - 50 years
• Complies with ATEX regulations
• Resistant to Methane, Hydrogen Sulphide and Chlorine
• Resistant to submersion in Petrol and Diesel
• Quick and easy to install



BBC NEWS Dec 26 2012

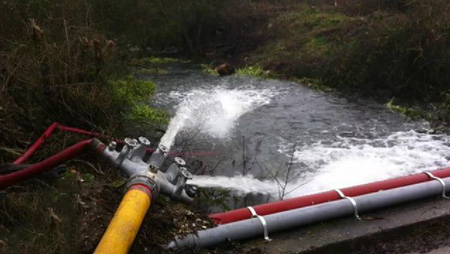

Water levels are falling slowly at an electrical substation in Reading, after heavy rain left it at risk of flooding, according to fire services.

Scottish and Southern Energy say they have plans to reroute power for 40,000 homes and businesses, should water reach the Burghfield site near Pingewood Lake.
