SPS Shrink Polymer System Medium Voltage Bus Bar Heat Shrink Tubes

By Chris Dodds on 4th February, 2013

Follow us on LinkedIn

SPS Shrink Polymer System Medium Voltage Bus Bar Heat Shrink Tubes

Heat Shrink Cable Joints & Cable Terminations

SPS High Voltage HV Heat Shrink Busbar Tubing 11kV-33kV



T&D have supplied over 2.5km of various sizes of SPS MV Medium Voltage Heat Shrink Bus Bar Tubing to insulate and protect 25kV bus bars on soft starters. T&D can supply busbar heat shrink tubing to suit Medium Voltage Soft Starters for motor ratings 30-3000A, 1500-15000V, 30KW - 50000KW.

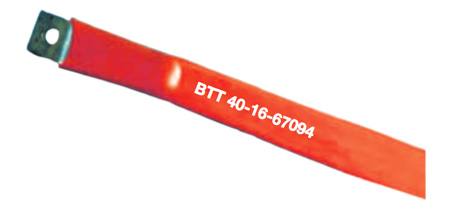

SPS Medium Voltage Busbar Tube

Shrink Polymer Systems BMT and BTT are red medium and thick wall unlined heat shrinkable tubes designed to insulate busbar systems up to voltages of 33kV and to protect against flashover.

High voltage heat shrink busbar insulation tubings provide flashover protection against accidental bridging of straight or angled, rectangular and round HV busbars, 11kV-33kV. HV busbar tubings are suitable for enclosed and exposed bus work and for high voltage connections in switchgear line ups and substations. HV high voltage busbar heat shrink tubes also enable clearance reduction within high voltage electrical insulation applications, 11kV-33kV.



SPS BMT and BTT Heat Shrink Busbar Tubing Features

  • Substantially improves clearance dimensions within installations
  • Highly flexible for use on straight or angled bars
  • Available on spools for reduced waste
  • Medium wall (BMT) and Thick wall (BTT) allows substantial reductions in Ph-Ph and Ph-E clearances compared with air insulated systems



SPS Heat Shrink Busbar Tubing Technical Data
SPS BMT and BTT

Performance

Test Method

Continuous Operating Temperature

-40 to +125°C IEC 216

Shrink Temperature

110°C IEC 216

Cold Bend -40°C for 4hrs

No Damage ASTM D2671

Flammability (Oxygen Index)

>25 ASTM 4589

Tensile Strength

>11.8 Mpa ASTM D638

Tensile Strength After Aging 120°C 168hrs

>10MPa ASTM D2671

Elongation at Break

>700% ASTM D638

Elongation at Break After Aging 120°C 168hrs

> 500% ASTM D2671

Water Absorbtion 23°C 14 days

< 0.5% ISO 32

Copper Corrosion 120°C 168hrs

No Corrosion ASTM D2671

Dielectric Strength

> 20kV/mm IEC 243

Dielectric Constant

max 3.0 IEC 250

Volume Resistivity

1x1013 Ohms/cm IEC 93

Mould Resistance

No Growth ASTM G21-D638

Heat Dissipation

Current Rating Not Effected by Tubing
