Shrink Polymer System Medium Voltage Busbar Heat Shrink Tubing

By Chris Dodds on 16th August, 2012

Follow @ThorneanDerrick

Busbar Heat Shrink Tubing for Switchgear 11kV 33kV

SPS Medium Voltage Busbar Tube

SPS BMT100/40 High Voltage HV Busbar Heat Shrink Tubing



T&D supply global switchgear manufacturers and contractors involved in the installation, refurbishment and maintenance of medium-high voltage switchgear, 11kV 33kV.

Shrink Polymer Systems BMT and BTT heat shrink busbar insulation tubings provide flashover protection against accidental bridging of straight or angled, rectangular and round HV busbars, 11kV-33kV.

BMT and BTT busbar tubes substantially improves clearance dimensions within installations and are highly flexible for use on straight or angled bars. Also vailable on spools for reduced waste.

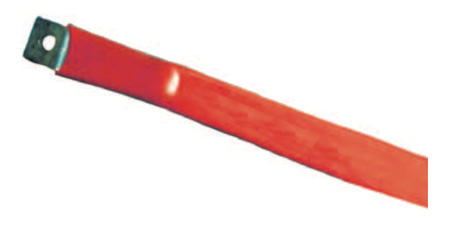

Pictured: Shrink Polymer System Medium Voltage Busbar Tube

SPS busbar tubings are suitable for enclosed and exposed bus work and for high voltage connections in switchgear line ups and substations. High voltage busbar heat shrink tubes also enable clearance reduction within high voltage electrical insulation applications, 11kV-33kV.

SPS BMT are red high voltage, thick walled, heat shrinkable tubes installed onto HV busbars to provide insulation at 6.6kV, 11kV, 15kV, 17.5kV, 24kV and 33kV. The high voltage insulation value of both medium wall (BMT) and thick wall (BTT) busbar heat shrink tubing allows substantial reductions in Phase-Phase and Phase-Earth clearances compared with air-insulated HV systems.

HV High Voltage Heat Shrink Busbar Tubing Applications

• Rectangular, square and round busbars
• Inline bolted connections of rectangular bus bars
• Copper or aluminum bus bars
• Metal-clad high voltage switchgear
• Metal-enclosed bus bar
• Substation switchgear



SPS Medium Voltage Busbar Tubes - BMT & MTT Specifications

Exp Dia   Rec Dia	Max Recovered Wall Thickness 'T'	W = Laid Flat Width 'W'	Rectangular Busbar 'X' = (a+b)	Round Busbar Dia 'D'
Medium Wall busbar Tube Spool Size 15mtr
Exp/Rec	Rec 'T'	Exp 'W'	'X' Range	'D' Range
SPS BMT 30/12	2mm	47mm	35mm - 22mm	25mm - 14mm
SPS BMT 35/14	2mm	55mm	38mm - 25mm	28mm - 16mm
SPS BMT 40/16	2mm	63mm	42mm - 28mm	32mm - 18mm
SPS BMT 50/20	2mm	78mm	60mm - 35mm	40mm - 22mm
SPS BMT 65/25	2mm	102mm	85mm - 44mm	55mm - 27mm
SPS BMT 75/30	2mm	117mm	94mm - 52mm	60mm - 32mm
SPS BMT 100/40	2mm	157mm	125mm - 70mm	80mm - 42mm
Thick Wall Busbar Tube Spool Size 15mtr
SPS BTT 30/12	2.3mm	47mm	30mm - 22mm	25mm - 14mm
SPS BTT 40/16	2.5mm	63mm	42mm - 28mm	32mm - 18mm
SPS BTT 50/20	2.5mm	78mm	60mm - 35mm	40mm - 23mm
SPS BTT 65/25	2.5mm	102mm	85mm - 44mm	55mm - 28mm
SPS BTT 75/30	2.6mm​	117mm	94mm - 52mm	60mm - 33mm
SPS BTT 85/35	2.6mm​	133mm	105mm - 60mm	70mm - 38mm
SPS BTT 100/40	2.8mm	157mm	120mm - 70mm	80mm - 44mm
SPS BTT 120/50	3mm	188mm	140mm - 85mm	100mm - 55mm
SPS BTT 150/60	3.5mm	235mm	160mm - 100mm	120mm - 65mm
