BS5467 XLPE AWA Single Core Power Cables Glanded (CMP) & Terminated (Cembre)

By Chris Dodds on 18th March, 2016

Follow @ThorneanDerrick

Image: Jim Andrews - CCR Contracts Manager

Pictured: BS5467 XLPE AWA Single Core Power Cables Glanded (CMP) & Terminated (Cembre)

Installed by Gavin Mayhew of Cableco Romans

Jim Andrews commented, "CMP cable glands were provided by our client and are pretty much the staple for the majority of projects we work on but Hawke and Prysmian also supply excellent gland kits."

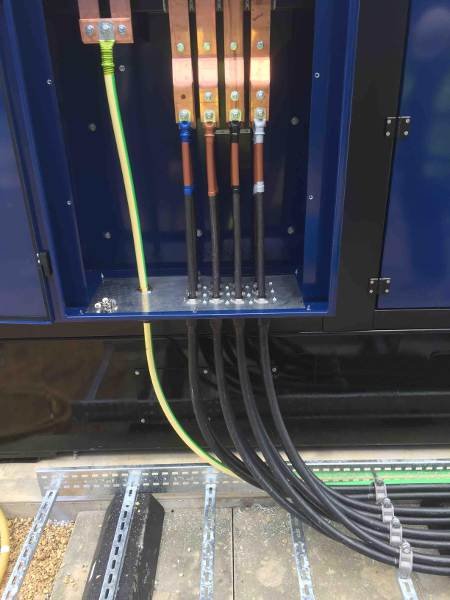

Pictured : BS5467 XLPE/AWA Single Core 185sqmm with 300sqmm Single Core Earth Cable -  CMP CW32 Cable Glands & Cembre Cable Lugs Installed.
