Boddingtons Cable Preparation Tools To Strip+Remove Bonded Semi-Conductive Screen From 33kV Cables

By Chris Dodds on 10th July, 2012

Follow us on LinkedIn

Boddingtons Cable Preparation Tools To Strip+Remove Bonded Semi-Conductive Screen From 33kV Cables

HV Cable Jointing & Terminating

Boddingtons Electrical Cable Preparation Tools

Bonded Semi-Con Strippers & Removal Tools For 33kV Cables



Boddingtons 244700 preparation tool is adopted and preferred by HV high voltage cable jointers needing to strip or remove the bonded semi-conductive screen from 33kV single core XLPE insulated AWA cables to BS6622 IEC60502-2.

Bonded semi-con screen removal tools can strip 33kV single core 185sqmm, 240sqmm, 300sqmm, 400sqmm, 500sqmm and 630sqmm cables. Suits 10-52mm diameter bonded semi-con screens up to 33kV. The Boddingtons 244700 shaving tool weighs 1345g and has a maximum rotating diameter of 200mm.

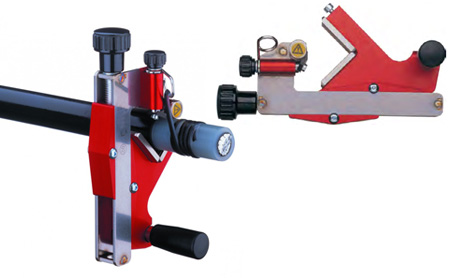

Pictured: Boddingtons 244700 Bonded Semi-con Screen Removal Kit

Boddingtons 244700 Preparation Tool

Boddingtons Bonded Semi-Conductive Screen Removal Tool Features

• The HV 33kV cable jointers tool has been designed for easy usage. To begin shaving the bonded semi-conductive screen just position the cable jointers tool at the point where you want to start, adjust the depth of cut and then move the tool around the 33kV cable using the handle

• The cable stripping operation can be started from the cable end (approx. 25mm of cable screen will not be stripped) or from an intermediate point (approx. 4mm of cable screen will not be stripped)

• A small handle activates and de-activates the axial advancing

• The semi-con stripping tool guarantees a smooth finish without irregularities after shaving and further guarantees a high quality chamfered edge ready for high voltage cable jointing at 33kV.

• The depth of cable cut is adjustable from 0 to 1.5mm in steps of 0.1mm without the need of additional cable jointing tools and can also be limited or locked

• 33kV semi-con stripping and removal tools comply with EN 10020

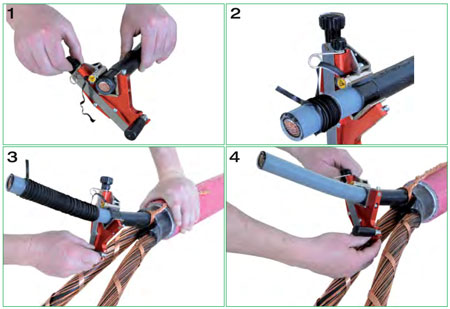

Pictured: How to use the semi conductive screen shaving tool

Boddingtons 244700 Bonded Semi-Con Stripping & Removal Tool Instructions



Boddingtons Electrical Bonded Semi-Conductive Screen Tools

Part Number

Description

Weight
Boddingtons 244700

Shaver for bonded semi-conductive screen (supplied in plastic case)

1345g
Boddingtons 244701

Spare blade for 244700 (17°)

5g
Boddingtons 244702

Silicone Paste for use with 244700

100g
Boddingtons 244703

Spare blade for 244700 (8°)

20g
Boddingtons 244706

Spares Kit for 244700 Cylinder/ Plates

10g
Boddingtons 244710

Set consisting of: 244700 / 244702 / 128930

1445g
Boddingtons 128930

Spare plastic case for 244700

100g

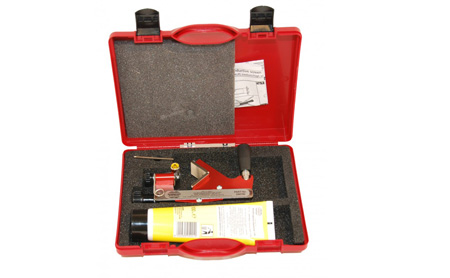

Pictured: Boddingtons Shaver for Semi Conductive Screen Ø 10 to 52mm

Boddingtons Shaver for Semi Conductive Screen Ø 10 to 52mm



Video: Boddingtons 244700 High Voltage Bonded Screen Removal Tool




  • Further Reading

Bonded Semi-Con Screen Removal Using The GB-P20 Cable Jointers Tool
