Motorola MOTOTRBO DP4000 ATEX Portable Two-Way Radios For Hazardous Areas

By Chris Dodds on 8th February, 2013

Follow @ThorneanDerrick

Hazardous Area Electrical Equipment

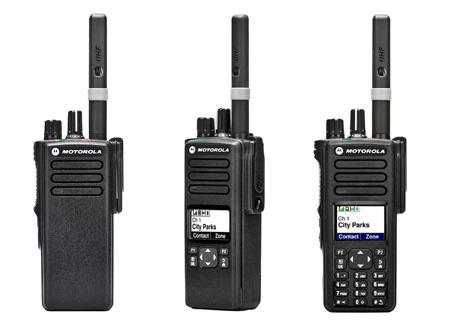

Motorola MOTOTRBO DP4000 Portable Two-Way Radios



Motorola MOTOBRO DP4000 portable radios are used in many industries such as manufacturing, utilities and transportation. The two-way radios have excellent audio quality full colour display, integrated Bluetooth for audio and data, enhanced GPS, and text messaging.

The DP4000 series also features support for up to 1000 channels and has up to 5 programmable buttons plus a dedicated emergency button. The radios are IP57 rated (dustproof and submersible in water), with optional UL-certified HazLoc rating to fully empower your demanding workforce.

Motorola’s MOTOTRBO ATEX radios provide high quality communication in hazardous areas with comprehensive user safety and class leading ATEX specifications allowing use when in environments containing potentially explosive gas and dust.

Motorola MOTOTRBO DP4000 Radio Features

• Intrinsic Safety
• Best-in-class Audio
• Text Messaging
• Embedded Bluetooth Audio
• Embedded Bluetooth Data
• Integrated GPS
• Emergency Button - Orange button on the top of the radio can be programmed to send an alert
• Three levels of scrambling or encryption built-in for increased security
• Transmit Interrupt - Enables a user to interrupt another radio conversation to deliver critical communication
• IP Site Connect - A digital solution that uses the internet to extend the voice and data capabilities of MOTOTRBO
• Rugged, Reliable Design



Motorola MOTOTRBO DP4000 Two-Way Radio Series Data

		DP4800 / DP4801			DP4600 / DP4601			DP4400 / DP4401
		VHF	UHF	300MHz5	VHF	UHF		VHF	UHF	300MHz5
Frequency		136-174 MHz	403-527 MHz	300-360 MHz 350-400 MHz	136-174 MHz	403-527 MHz		136-174 MHz	403-527 MHz	300-360 MHz 350-400 MHz
Channel Capacity		1000			1000			32
NiMH (1400mAh) battery	(HxWxL)	130.3mm x 55.2mm x 38.7mm			130.3mm x 55.2mm x 38.7mm			130.3mm x 55.2mm x 37.2mm
	Weight	425.5 g			426.5 g			393g
Li-ion (1400mAh) battery	(HxWxL)	130.3mm x 55.2mm x 41.1mm			130.3mm x 55.2mm x 41.1mm			130.3mm x 55.2mm x 39.6mm
	Weight	365.5g			366.5g			333g
IMPRES Li-ion Slim (1650mAh) battery	(HxWxL)	130.3mm x 55.2mm x 35.8mm			130.3mm x 55.2mm x 35.8mm			130.3mm x 55.2mm x 34.3mm
	Weight	335.5g			336.5g			303g
IMPRES Hi-Cap Li-ion (2250mAh) battery	(HxWxL)	130.3mm x 55.2mm x 41.1mm			130.3mm x 55.2mm x 41.1mm			130.3mm x 55.2mm x 39.6mm
	Weight	355.5g			356.5g			323g
IMPRES Hi-Cap Li-ion FM (2350mAh) battery	(HxWxL)	130.3mm x 55.2mm x 41.1mm			130.3mm x 55.2mm x 41.1mm			130.3mm x 55.2mm x 39.6mm
	Weight	365.5g			366.5g			333g
IMPRES Hi-Cap Li-ion TIA4950 (2500mAh) battery	(HxWxL)	130.3mm x 55.2mm x 41.1mm			130.3mm x 55.2mm x 41.1mm			130.3mm x 55.2mm x 39.6mm
	Weight	410g			411g			378g
IMPRES Hi-Cap Li-ion (2800mAh) battery	(HxWxL)	130.3mm x 55.2mm x 41.1mm			130.3mm x 55.2mm x 41.1mm			130.3mm x 55.2mm x 39.6mm
	Weight	385.5g			386.5g			353g
Power Supply		7.5 V (Nominal)
Operating Temperature		-30 ~ +60°C³
