ATEX Certified Terminal Enclosures for Hazardous Areas

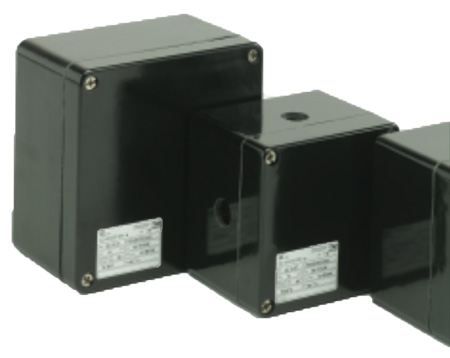

Petrel G40 Series GRP Terminal Enclosures

Petrel G40 GRP terminal enclosure range is certified to ATEX Cat II Zone 1. The G40 electrical enclosure range features heavy duty, GRP moulding, a silicone weather seal and glass reinforced duroplastic polyester with added graphite to prevent static build-up. The electrical enclosures with ATEX certification may be configured to customer’s requirements where standard stock formats are not suitable. SIRA and PTB certified.

Petrel G40 Series GRP Terminal Enclosures Technical Data

Voltage/Current Ratings	Dependant upon Ex components fitted and conductors used
Operating Temperature	T6 -20°C to +40°C, T5 -20°C to +55°C
Terminals	2.5 up to 120 – subject to enclosure limits
Flammability	Self Extinguishing, UL 94/V Use handle and cable gland for plug 4 fixing holes on plug to handle units
Material	Glass reinforced duroplastic polyester, graphite added Halogen Free
Colour/Finish	Black as moulded
Mounting	G41 – G47 Internal fixing holes G48 & G49 External fixing holes
Features	Silicone weather seal Heavy duty GRP mouldings Graphite loaded material to minimise static build up

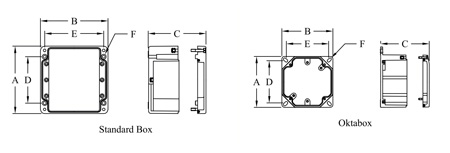

Petrel G40 GRP Terminal Enclosure Dimensions

Petrel G40 Enclosure - Standard Box
Product No.	A             B	C	D	E	FØ
Petrel G41	120mm x 120mm	90mm	82mm	106mm	6.3mm
Petrel G42	160mm x 160mm	90mm	110mm	140mm	6.5mm
Petrel G43	250mm x 250mm	120mm	200mm	235mm	6.5mm
Petrel G44	405mm x 405mm	120mm	355mm	388mm	6.5mm
Petrel G45	160mm x 260mm	90mm	110mm	240mm	6.5mm
Petrel G46	160mm x 360mm	90mm	110mm	340mm	6.5mm
PetrelG47	250mm x 600mm	120mm	200mm	380mm	6.5mm
Petrel G40 Enclosure - Oktabox
Petrel G48	120mm x 120mm	76mm	100mm	100mm	5.5mm
Petrel G49	160mm x 160mm	93mm	140mm	140mm	5.5mm
