ASTM D178 Electrical Rubber Insulating Matting for High Voltage Switchboard Protection

By Chris Dodds on 15th August, 2012

Follow @ThorneanDerrick



Electrical Safety Equipment

Switchboard & Switchgear Rubber Insulating Matting

ASTM D178 Rubber Insulating Matting



T&D have delivered their largest order to date for MD552 high voltage switchgear rubber insulating matting to the Pakarab Fertilizers in Pakistan. The ASTM D178 insulating rubber matting will provide protection for working in the vacinity of low and high voltage switchboard and switchgear around the plant.

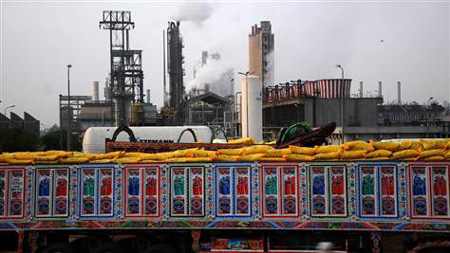

Pictured: Pakarab Fertilizer Factory, Pakistan

Electrical safety rubber matting is fully tested to ASTM D178 /ANSI JS.7 Type II (2) Class I (1) standards including full testing over the entire mat surface and stamped on the reverse every 100cm with identification coding. An extremely ultra high specification and high quality natural insulating rubber switchgear matting product able to withstand the following:

• Dielectric Test to 20kV
• Surface Proof Test to 10kV
• Working Voltage 7.5kV

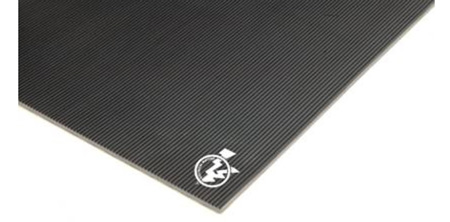

Pictured: ASTM D178 Electrical Rubber Matting

ASTM D178 Electrical Matting Specifications

Colour	Black
Hardness	65 Shore A
Density [SG]	1.45
Tensile Strength	5.0 Mpa
Elongation	300%
Temperature Range	-20/+70°C
Abrasion Resistance	180 mm²
Thickness	4.5mm
Weight/M2	5.5kg



ASTM International, formerly known as American Society for Testing & Materials (ASTM), is a globally recognized leader in the developement and delivery of international voluntary consensus standards - ASTM standards are used around the world to improve product quality, enhance safety, facilitate market access and trade.

For the last 38 years, Pakarab Fertilizers Limited has been the only fertilizer company in Pakistan producing compound fertilizers, Calcium Ammonium Nitrate (CAN) and Nitro Phosphate (NP). The Plant also produces Urea.



Invitation

Thorne & Derrick are inviting you to join LinkedIn’s fastest growing Discussion Group : Low & High Voltage Power, Cabling, Jointing, & Hazardous Area Electricals (LV-HV).

Discussion subjects include cable installations, cable jointing, electrical substation, overhead line and electrical construction at LV, 11kV, 33kV and EHV.

Network, engage and promote your profile, company or products with over 10,000 influencers.

20kV Electrical Rubber Matting ASTM D178 ANSI JS.7 Type 11 Class 1 - MD552
