Rolec HandCase Handheld Aluminium Enclosures For Use In Harsh Environmental Conditions - Rated IP66

By Chris Dodds on 7th August, 2012

Follow @ThorneanDerrick

Hazardous Area Electrical Equipment

Aluminium Electrical Enclosures

Rolec HandCase Handheld Enclosures IP66

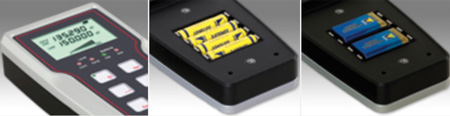

HandCase aluminium electrical enclosures from Rolec now feature externally accessible battery compartments and are manufactured from die-cast aluminium rather than the ABS plastic typically used for electrical enclosures. IP66 aluminium enclosures have been designed for mobile handheld electronics destined for use in harsh environmental conditions, either indoors in outdoors.


Typical aluminium enclosure applications will include test and measurement equipment, machine and robot controllers, detection equipment and data logging units. Rolec aluminium enclosures are very robust and offer a high degree of EMC shielding, which can be especially useful for RF equipment.

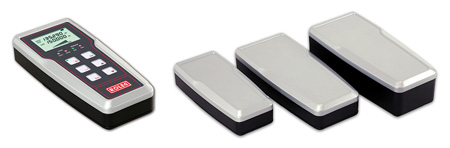

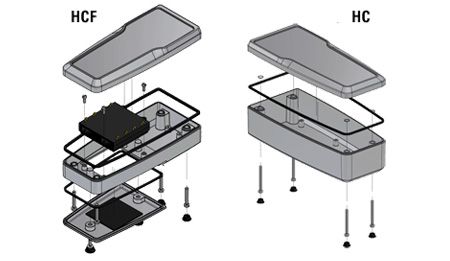

Assemblies consist of three separate die castings - the top, base and battery compartment lid - plus two moulded TPE sealing gaskets and four screw gaskets. The cases are assembled by four corrosion proof stainless-steel M3 screws. Three standard aluminium enclosure sizes are offered with external dimensions of 180 x 80 x 42, 220 x 100 x 42 and 220 x 100 x 62mm. The two smaller enclosure sizes are supplied with an integral battery compartment for four 1.5V AA cells or two 9V cells.





Rolec HandCase Handheld Enclosures Features

• Modern diecast aluminium handheld cases
• Ergonomic design; comfortable to hold
• High performance IP 66 protection class
• Type S - with display/keypad shaped recess
• in the top section for a membrane keypad
• or product label
• Type R - with all over recess in the top
• section for maximum size membrane
• keypad or product label
• With or without battery compartments
• Weatherproof and waterproof
• Internal screw bosses for mounting PCBs, displays, keypads etc



Rolec HandCase Handheld Enclosures​ Technical Data

IP Rating	IP66 / EN 60529 IP67 on request
Material	Die-cast aluminium EN AC-44300 DIN EN 1706 (GD Al Si 12/DIN 1725)
Finish / Colour	Powder coat - slightly textured  Type S: base - black, RAL 9005, top - silver metallic Type R: base & top - light grey, RAL 7035 Special finish & colours on request
Lid Gasket	TPE moulded gasket
Lid screws	Stainless steel assembly screws 1.4567
Internal Mounting	Threaded M3 screw bosses
Certification	GOST R

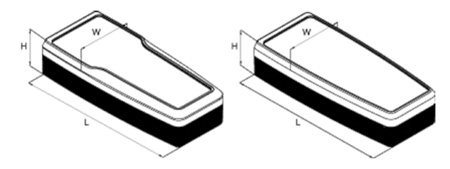

Rolec HandCase Handheld Aluminium Enclosures Dimensions

Rolec handCASE
Type	Part.no.	Length	Width	Height	Weight
Rolec HCF 080	270.080.000	180mm	80mm	42.5mm	450g
Rolec HCF 081	270.081.000	180mm	80mm	42.5mm	430g
Rolec HCF 100	270.100.000	220mm	100mm	42.5mm	600g
Rolec HC 100	271.100.000	220mm	100mm	62.5mm	660g
Rolec handCASE R
Type	Part.No	Length	Width	Height	Weight
Rolec HCF 080 R	272.080.000	180mm	80mm	42.5mm	450g
Rolec HCF 081 R	272.081.000	180mm	80mm	42.5mm	430g
Rolec HCF 100 R	272.100.000	220mm	100mm	42.5mm	600g
Rolec HC 100 R	273.100.000	220mm	100mm	62.5mm	660g
