3M Scotchrap 50 & 51 All-Weather Corrosion Protection Tape

3M Scotch Electrical Tapes

3M Scotchrap Corrosion Protection Tapes



3M Scotchrap All-Weather Corrosion Protection Tapes 50 & 51 is a polyvinyl chloride (PVC) tape with a high-tack adhesive provides a corrosion and impact resistant seal for all-weather protection of metal piping systems above and below ground.

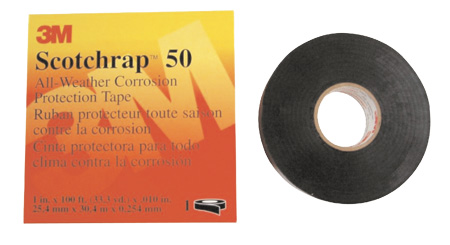

Pictured: 3M Scotchrap Corrosion Protection Tape 50 and 51 Unprinted

3M Scotchrap Corrosion Protection Tape 50 and 51

3M Scotchrap Corrosion Protection Tapes 50 & 51 Features

  • Resistant to corrosive salt water, soil acids, alkalies and salts, common chemicals, chemical vapors, and exposure to outdoor weathering and sunlight.
  • Resistant to impact, abrasions, punctures, and tears.

3M Scotchrap 51 Corrosion Protection Tape is a tough, PVC based tape with special high tack adhesive formulated to resist corrosion of above and underground cables, pipes, fittings and joints on all millcoated pipe and electrical conduit systems.

3M Scotchrap 50 and 51

3M Scotchrap All-Weather Corrosion Protection Tape 50 & 51

Property

3M 50 Tape 3M 51 Tape

Colour

Black Black

Thickness

10 mils (0.254mm)

20 mils (0.508mm)

Breaking Strength

20 lb./in. (3,5 kN/m)

40 lb./in. (7,0 kN/m)

Adhesion to Steel

10°F (-12°C)

74°F (23°C)



30 oz/in (0,328 kN/m)

20 oz./in (0,219 kN/m)



30 oz/in (0,328 kN/m)

20 oz./in (0,219 kN/m)

Adhesion to Backing

10°F (-12°C)

74°F (23°C)



30 oz/in (0,328 kN/m)

20 oz./in (0,219 kN/m)



30 oz/in (0,328 kN/m)

20 oz./in (0,219 kN/m)

Roll Unwind

10°F (-12°C)

74°F (23°C)



16 oz/in (0,175 kN/m)

16 oz/in (0,175 kN/m)



16 oz/in (0,175 kN/m)

16 oz/in (0,175 kN/m)



3M Scotchrap tapes are easy to apply without special tools or dangerous flame. However, a few general application procedures should be followed to obtain optimum 3M tape performance. Surfaces to be wrapped should be clean, dry and free of oil, grease and other contaminants.

Blast removal of rust and scale is preferred. Welding slag and spatter, sharp edges or burrs should be chipped, ground or filed. Apply a uniform, continuous coating of 3M Scotchrap Pipe Primer to the prepared surfaces and let dry.

Fill in irregular surfaces with Scotchfil Electrical Insulation Putty. Cover weld beads with one wrap of tape over the entire surface.
