3M Scotchcast M Series Flexible Cable Repairs For Crane Grabs

By Chris Dodds on 21st April, 2015

Follow @ThorneanDerrick

3M Scotchcast M Series Cable Repair Kits For Crane Grab Power Cables

Flexible and reeling cables are subject to frequent coiling movement and high mechanical strain - therefore any cable repair solution should replicate the properties of that cable so as not to compromise operational efficiency.



The 3M Scotchcast M flexible cable joint repair kits are suitable for the repair of flexible reeling crane cables which pass over guide pulleys and drums especially in the container handling and port authority industry. This includes repairs to Cordaflex flexible and reeling cables on mobile equipment such as ship loaders, gantry cranes, stackers, reclaimers, inclinators, hoists and spreader cranes.

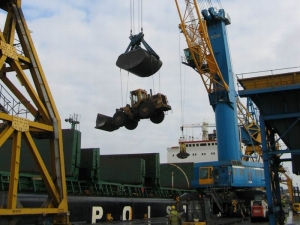

Typical Grabbing Cranes - Mobile Harbour Cranes (MHC’s)

• Multi purpose cranes for bulk handling, break bulk, container handling
• Floating cranes
• Barge or pontoon mounted cranes
• Slewing cranes (jib cranes)
• Fixed or rail mounted cranes with a single jib or double jib (level luffing)
• Ship unloaders (gantry cranes)
• Unloaders are normally used for handling very large volumes of bulk materials

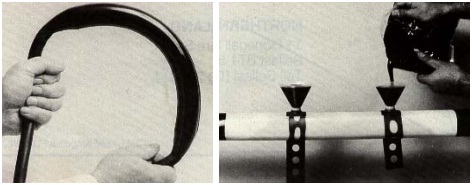

Pictured: 3M Scotchcast M Series Flexible Cable Jointing & Repair System

The 3M cable repair and joint kit provides a flexible and waterproof cable repair with a minimum cable diameter enlargement whilst at the same time providing equivalent tensile strength as the original cable.

3M Scotchcast Flexible Cable Jointing and Repair System Specifications

Kit No	Cable Size - Min (mm)	Cable Size - Max (mm)	Max Length Of Joint (mm)	Mould Length (mm)	Quantity Of Resin Needed For Joint (Grammes)
M20	40	63	360	510	1200 (2xC Size Packs)
M30	47	100	520	740	2220 (3 x C & 2 x B Size Packs)
M40	27	150	813	1118	3600 (6 x C Size Packs)



Low Voltage Flexible Reeling Cables Prysmian Protolon Cordaflex Cables
