3M Underground Direct Bury Splice Kits DBR/Y-6 and DBO/B-6

By Chris Dodds on 29th July, 2012

Follow @ThorneanDerrick

3M Direct Bury Splices - DBR/Y-6 and DBO/B-6

Underground Cable Splice Kits

3M Direct Bury Splice Kits provide quick, reliable underground cable splicing and cable jointing for landscape lighting, sprinkler and irrigation systems. 3M specially designed plastic insulator tube comes pre-packaged containing insulating gel for underground cable splicing and cable jointing.

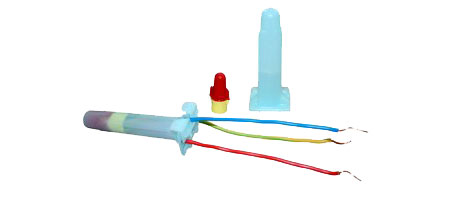

Pictured: 3M Direct Bury Splice Kit DBR/Y-6

The bury splice kits kits electrically connect and provide moisture seal wiring up to 600 volts which may be exposed to water. 3M Direct Bury Splice kits include two 3M Performance Plus Wire Connectors with quick bite and smooth twist plus two high-impact, UV-resistant tubes filled with moisture-resistant grease.

Pictured: 3M DBRY6 & DBOB6 Bury Splice Kits

3M Direct Underground Cable Splice Kits DBR/Y-6 & DBO/B-6 Benefits

• UL Listed for direct bury applications
• Reliable moisture-resistant connections
• Quick-bite connector accepts wide wire combination range
• Cap on high-impact tube provides good strain relief
• Quick and easy to install for long-term reliability



3M Direct Bury Splice DBR/Y-6 & DBO/B-6 Kit Specifications

Agency Approvals	UL
Colour	Orange / Blue
Conductor Sizes	10 AWG,‎ 18 - 10 AWG,‎ 18 AWG
Connection Type‎	Wire
Flame Retardant‎	Yes,‎ UL-94 V-2
Wire Gauge‎	10 AWG - 18AWG
Maximum Voltage Rating	600V
Application Temperature	32°F to 120°F (0°C to 49°C)
Operating Temperature	-40°F to 221°F (-40°C to 105°C)



Video: 3M Direct Bury Splice Kits - Underground Cable Splice Kits
