132kV Sudkabel Straight Joint (XLPE Single Core 400sqmm With AWA & Lead Sheath)

By Chris Dodds on 18th March, 2016

Follow @ThorneanDerrick

Image: Maxim Taraskin Senior Field Superintendent – LLC Estralin PS

Pictured: 132kV Sudkabel Straight Joint (XLPE Single Core 400sqmm With AWA & Lead Sheath)

The high voltage cable is operating 135kV and the cable joint is tested to 145kV. Sudkabel are global leaders in manufacturing EHV cablejoints and terminations for XLPE insulated cables. T&D stock and distribute the Alroc range of MV-HV tools to enable the preparation of sheath, insulation and screen prior to installing Sudkabel joints and terminations.

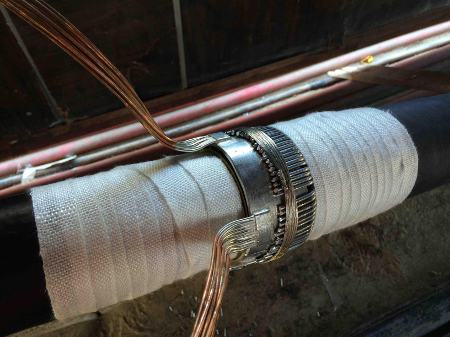

Pictured : 132kV Straight Joint - Single Core 400sqmm. Ready for welding contact ring with aluminium armour and lead covered sheath cable.
