3M QT111 Cold Shrink Cable Termination Kits - 11kV Three Core

By Chris Dodds on 28th January, 2013

Follow @ThorneanDerrick

3M Cold Shrink Cable Terminations

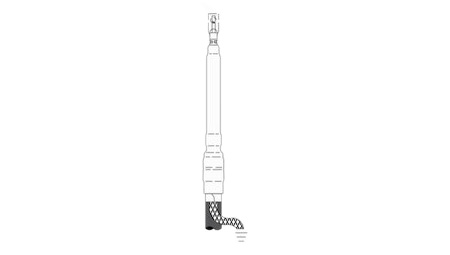

3M Cold Shrink QT111 11kV 3 Core High Voltage Polymeric Cable Terminations



3M Cold Shrink QT111 high voltage polymeric cable terminations offer faster, safer and simpler cable installations without the dangers and hassles of “hot-working” associated with heat shrink terminations - no naked flames, no gas torches, no ignition tooling, no “hot-work” permit applications.

3M Cold Shrink QT-III 7620-T & 7690-T Series Termination Kits ensures a pliable, tight seal for tape shield, wire shield and UniShield power cables. The conjunction of high dielectric-constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.

3M QT111 Cold Shrink Cable Terminations Features & Benefits:

• Conforms to the IEEE Standard 48 Class 1 requirements for 5, 8, 15, 25/28 and 35 kV terminations
• Excellent 3M Cold Shrink electrical insulating performance
• Hydrophobic properties - water and moisture resistant
• Excellent high and low temperature operation
• UV stable for outdoor 11kV cable termination applications
• Non-flammable silicone rubber Cold Shrink termination
• One-piece 11kV cable termination for quick installation
• Built in cold shrink stress control for reliable high voltage service
• Compact design for limited working access in cable end termination boxes



3M Cold Shrink QT111 Termination Kits

Termination Kit	Skirt No.	System Voltage	Operating Environment
			Light	Medium	Heavy	Extremely Heavy
3M 7620-S-2-3M 7621-S-2	2 Skirt	5kV & 8kV	✓	✓	✓
3M 7622-S-2	2 Skirt	15kV	✓	✓	✓
3M 7692-S-4 - 3M 7696-S-4	4 Skirt	15kV	✓	✓	✓	✓
3M 7683-S-8 - 3M 7686-S-8	8 Skirt	15kV	✓	✓	✓	✓
3M 7692-S-4 - 3M 7696-S-4	4 Skirt	25kV / 28kV	✓	✓	✓
3M 7683-S-8 - 3M 7686-S-8	8 Skirt	35kV	✓	✓	✓
3M 7685-S-12 - 3M 7686-S-12	12 Skirt	35kV	✓	✓	✓	✓
