Pole Cleats - Ellis Patents Heavy Duty Radiused Pole Cable Cleats

By Chris Dodds on 14th August, 2013

Follow @ThorneanDerrick

Heavy Duty Cable Cleats

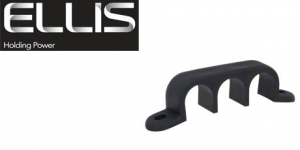

Ellis Patents Heavy Duty Radiused Pole Cleats are manufactured in Black Polypropylene (B), as standard.

The Ellis Patents pole cleats are curved and robust for securing cables. The heavy duty radiused pole cleats secure power cables onto 200mm diameter wooden electricity supply poles.

Ellis Patents Heavy Duty Radiused Pole Cleat Features:

• Single, 2 Way & 3 Way Cable Cleat Applications
• Specialist Cable Fixings For Utilities
• Polymer - Non LSF Cable Cleats



Ellis Patents radiused pole cleats are available in 3 cable cleat options:



Single Way Cleats                 Two Way Cleats                    Three Way Cleats

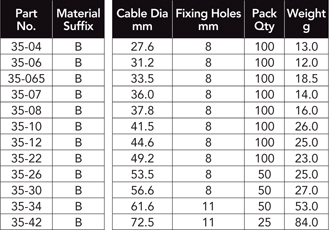

Ellis Patents Single Way Heavy Duty Radiused Pole Cleat Specifications

Ellis Patents Two Way Heavy Duty Radiused Pole Cleat Specifications

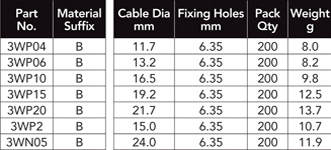

Ellis Patents Three Way Heavy Duty Radiused Pole Cleat Specifications



Ellis Patents Cable Cleats Video Playlist

Ellis Patents Catalogue - Cable Cleats, Cable Clamps & Cable Straps

• Further Ellis Patents reading

Ellis Patents Cable Guide Clamp - Video

Cable Cleats - The Ellis Patents Black Book Guide To Cable Cleats

Cable Cleats From Ellis Patents - The Innovation Game
