110kV Prysmian Screen Break Cable Joint - EHV Extra High Voltage

By Chris Dodds on 30th July, 2015

Follow @ThorneanDerrick

By EHV Cable Jointer

Andrew Brezovszky

Energex Australia

Energex distribute electricity to more than 1.4 million residential, commercial and industrial customers across a population base of around 3.2 million in South East Queensland.

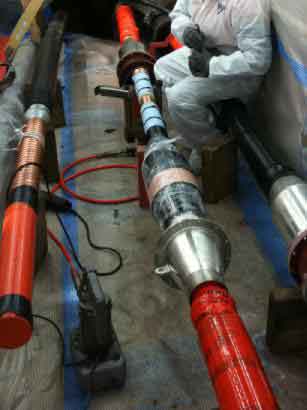

Prysmian 110kV Screen Break Joint - landing the stress control joint mould onto 1600sqmm cable. An extraction tool is used to remove the pre-mould from the carrier tube

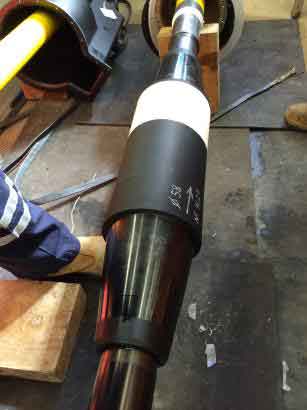

Prysmian 110kV Screen Break Joint - an older style 110kV Prysmian screen break joint used on a super-sheathed cable (stainless steel corrugated sheath over the copper corrugated sheath).

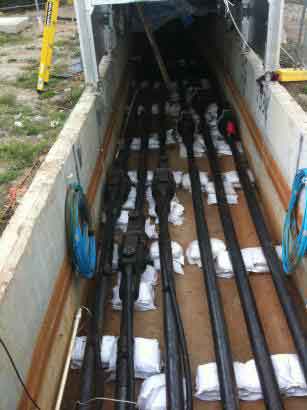

Prysmian 110kV Screen Break Joint - completed 110kV super-sheathed XLPE cable with Prysmian screen break joints on paralleled feeders.
