WT Henley House Service Cut-outs

House Service Cutouts - WT Henley Series 6



WT Henley Series 6 house service cut-outs are designed for use on Seperate Neutral & Earth Systems (SNE). Series 6 house service cut-outs are compliant with BS7657 - single pole (SP), single pole plus neutral and earth (SP+N+E) and triple pole Series 6 house service cut-out variants are available.

WT Henley Series 6 Features

  • GRP moulded cutouts provide high mechanical strength resisting combustion or tracking at working voltages
  • Busbarring facility by insulated busbar which interconnects via the cable entry ports
  • CNE link fitted in open position closed by removing knockout between neutral and earth terminals and relocating the link

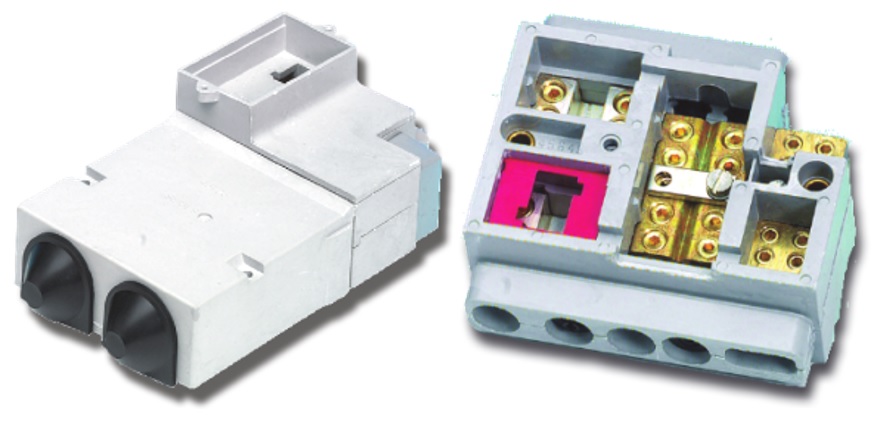

Pictured : WT Henley Series 6 House Service Cutout. For single pole and neutral and triple pole and neutral sets the cutouts and protection chambers are supplied as separate items.

WT Henley Series 6 House Cutout



WT Henley Series 6 house service cut-outs are rated up to 100amps and are suitable for low voltage cable termination up to 35sqmm (stranded copper or solid aluminium).


House Service Cut Outs - WT Henley Series 6

Product Specification

Cut Out Description WT Henley House Service Cut Out Part Number
60/80A 100A
Single Pole Cut Out 54141-03 54142-07
Single Pole and Neutral (with separate earth terminal & CNE link in open position) 54143-08 54144-04
Protection Chambers (with 2 PVC Bushes and blank entries)
For Single Pole and Neutral and Earth set 54317-01
For Triple Pole and Neutral and Earth set 54318-02
Accessories and Spares
2 Way Busbar 54382-85
Fuse Carriers 60/80A 100A
54365-10 54365-13
Insulated Hexagon Headed Screwdriver 53485-36
Solid link in red carrier (used in place of fuselink)  54365-05
Fuselink BSHD 60269-3:2010, BS 88-3:2010
16 x 22 x 57mm to suit 60/80A Carrier 16 x 30 57mm to suit 100A Carrier
30A 58332-04 30A 58332-30
60A 58333-07 60A 58333-11
80A 58334-08 80A 58334-04
100A 58334-09 100A 58334-06
Isolator
Single Pole and Neutral and Earth (fitted with red solid link carrier) 54361-01
Maximum Cable Sizes
Phase and Neutral (incoming and outgoing) 35sqmm
Earth 25sqmm
Time switch 10sqmm

Pictured : WT Henley Series 6 House Service Cutout Dimensions

WT Henley Series 6 House Service Cutout Dimensions

WT Henley Series 6 House Service Cut Outs

WT Henley Heavy Duty Cut Outs

T&D with WT Henley offer a range of Heavy Duty Cut-Outs.

Adobe House Service Cut-Out - Series 6 Single Pole 60/80A - Henley 54141-03

Adobe House Service Cut -Out - Series 6 Single Pole 100A - Henley 54142-07

Adobe House Service Cut-Out - Series 6 SP&N 60/80A - Henley 54143-08

Adobe House Service Cut-Out - Series 6 SP&N 100A - Henley 54144-04
