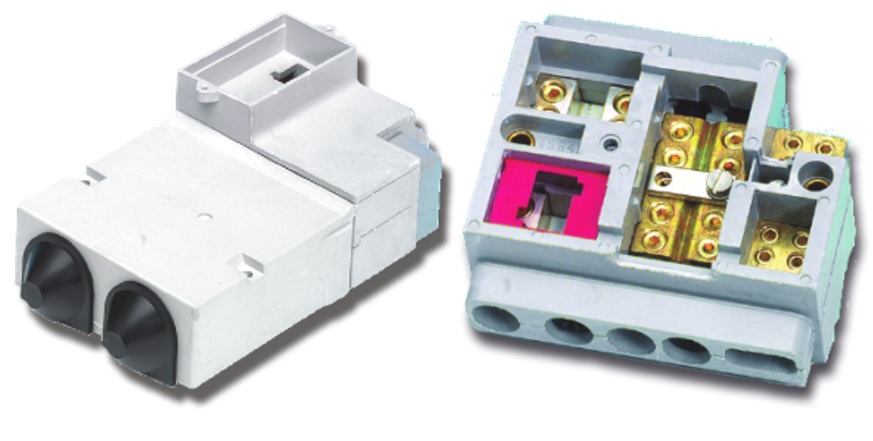

WT Henley 54142-07 House Service Cutouts - Series 6, 100Amp, Single Pole

WT Henley House Service Cutouts - Series 6

WT Henley 54142-07

240/415V, 100Amp, Single Pole

Separate Neutral & Earth (SNE)

BS7657 : 2010

WT Henley Series 6 House Service Cut-outs are BS7657 compliant, rated up to 100amps and suit low voltage cables up to 35sqmm (stranded copper or solid aluminium).


WT Henley 54142-07 Series 6 House Service Cut-outs have the following overall dimensions:

• Length 188mm
• Width 108mm
• Depth 96mm

Cartridge Fuselinks available seperately, (BS 1361)

• 30Amp   Fuselink - 58332-06
• 60Amp   Fuselink - 58333-11
• 80Amp   Fuselink - 58334-04
• 100Amp Fuselink - 58334-06

WT Henley Series 6 house service cutouts can be combined to form triple pole sets. WT Henley 54142-07 100A cutout is available as Single Pole & Neutral (with separate earth terminal & CNE link in open position), order reference WT Henley 54144-04.

House Service Cut Outs 240V 415V CNE & SNE - WT Henley Series 5, 6, 7

T&D with WT Henley offer a range of Heavy Duty Cut-Outs.

WT Henley Series 6 House Service Cut-outs, Single Pole, 100 Amp, 54142-07
