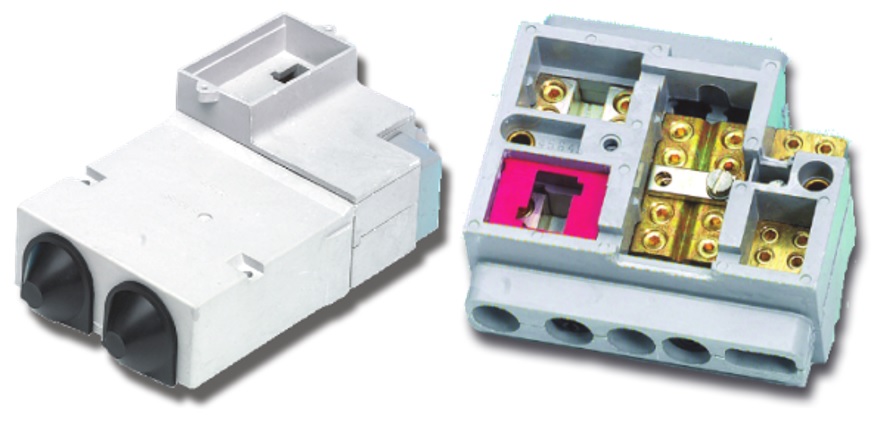

WT Henley 54141-03 House Service Cutouts - Series 6, 60/80Amp, Single Pole

WT Henley House Service Cutouts - Series 6

WT Henley 54141-03

240/415V, 60/80Amp, Single Pole

Separate Neutral & Earth (SNE)

BS7657 : 2010

WT Henley Series 6 House Service Cut-outs are BS7657 compliant, rated up to 100amps and suit low voltage cables up to 35sqmm (stranded copper or solid aluminium).

WT Henley 54141-03 Series 6 House Service Cut-outs have the following overall dimensions :

• Length 99mm
• Width 44mm
• Depth 96mm

Cartridge Fuselinks available seperately, (BS 1361)

• 30Amp   Fuselink - 58332-04
• 60Amp   Fuselink - 58333-07
• 80Amp   Fuselink - 58334-08
• 100Amp Fuselink - 58334-09

WT Henley Series 6 house service cutouts can be combined to form triple pole sets. WT Henley 54141-03 60/80A cutout is available as Single Pole & Neutral (with separate earth terminal & CNE link in open position), order reference WT Henley 54143-08.

House Service Cut Outs 240V 415V CNE & SNE - WT Henley Series 5, 6, 7

T&D with WT Henley offer a range of Heavy Duty Cut-Outs.

WT Henley Series 6 House Service Cut-outs, 60-80 Amp, 54141-03
