Prysmian Bicon 371AA06 Hook Cable Cleat - 32-38mm

Prysmian Hook Cleats

Prysmian Bicon 371AA06

371 Series Hook Cable Cleat





Prysmian Bicon 371AA06 Hook Cable Cleat is an LUL approved two pieces aluminium industrial cleat designed to aid single person installation. Prysmian Bicon 371AA06 hook cleat suits 32-38mm cable diameters.

Prysmian 371AA06 cable cleats with single bolt fixing are suitable for LV, MV or HV power cables up to 38mm outer sheath diameter depending on short circuit protection levels.

Prysmian 371AA06 Cable Cleats

Technical Specification

• Aluminium Cable Cleat
• Single Way Cable Cleat
• Two Piece Single Fix Design
• Cable Cleat Diameter Min 32mm
• Cable Cleat Diameter Max 38mm

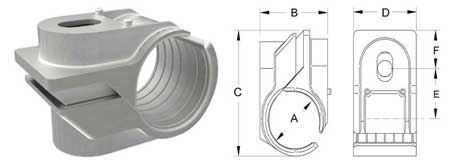

Pictured: Prysmian Bicon 371AA06 Hook Cable Cleat - 32-28mm

Prysmian Bicon 371AA06 Hook Cable Cleat - 32-28mm - Product Specification

Cable and Cleat Selection			Hook Cleat Details
Design Number	Cable Diameter		Dimensions						Weight
Aluminium	A		B		C	D	E	F	G
	Min	Max	Min	Max
371AA06	32mm	38mm	44mm	50mm	81mm	45mm	32mm	24mm	113g
