 Fire Resistant Cable Cleats for FP Fire Performance Cables

Formerly Pirelli Cables, formerly BICC (BICON)

Prysmian FP

Prysmian

Prysmian Galvanised Cast Iron Claw cable cleats are suitable for fire performance and fire resistant building services cable installations withstanding 1000 degrees Celsius for 2 hours. Fire resistant cable cleats are generally used to cleat Prysmian FP cables including FP400, FP600, FP600S and Draka Firetuf.

  • Suitable for use with cables from 10 to 54mm in diameter
  • Available in 9 sizes
  • Can be used for all types of cable routes Hot dip galvanised fi nish on cast iron
  • Operating temperature -60ºC to +100ºC & can withstand 2hr excursion to 1000ºC
  • Two-piece, single fi xing design
  • Can be stacked to a maximum of three on one fixing

Pictured: Fire Resistant Cable Cleats for FP Fire Performance Cables

Fire Resistant Cable Cleats for FP Fire Performance Cables

Fire Resistant Cable Cleats for FP Fire Performance Cables - Cable & Cleat Details
Prysmian Cable and Cleat Selection Prysmian Cable Cleat Details
Design Number Cable Diameter A (mm) Dimensions (mm) Approx Weight SWL (FOS 3) Stud Size
Min Max B C D E g kg
370CG01 10 13 22 38 46 16 227 150 M10
370CG02 13 16 22 38 46 16 208 148 M10
370CG03 16 19 25 41 46 18 232 121 M10
370CG04 18 22 28 45 46 19 279 112 M10
370CG05 21 26 32 48 46 21 299 95 M10
370CG06 25 32 37 54 46 24 319 85 M10
370CG07 31 38 43 60 46 27 395 83 M10
370CG08 36 46 53 67 46 30 492 60 M10
370CG09 44 54 59 73 46 33 502 62 M10

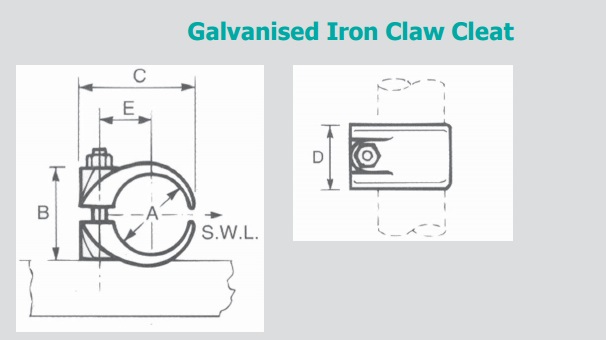

Fire Resistant Cable Cleats for FP Fire Performance Cables - Dimensions

Fire Resistant Cable Cleats for FP Fire Performance Cables - Dimensions
