Prysmian Aluminium Cable Cleats With Liners - EHV Cables 105-149mm

Prysmian - Aluminium Cable Cleats, Two Hole

EHV Cables 105-149mm

Prysmian Bicon 370 Series

Prysmian 2 Bolt Cable Cleats are suitable for cleating and clamping EHV (Extra High Voltage) power cables for transmission and distribution networks from 66kV, 132kV and 400kV, covering cable diameters 105-149mm.

Prysmian 370 series aluminium 2 bolt cleats feature 5mm Zac rubber liners to cushion high voltage power cables against damage during installation or short-circuits. The lining provides additional protection to the cable jacket sheath should the cable cleat be subject to a short circuit situation.

These cable cleats with liners have design numbers with the Suffix “L”.

Pictured: Prysmian Aluminium Cable Cleats With Liners

EHV Cables 105-149mm

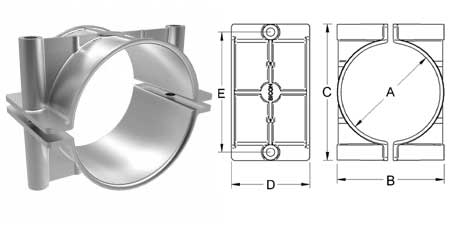

Prysmian Bicon Aluminium Two Bolt Cleat With Rubber Linings

Cable and Cleat Selection				Cable Cleat Details
Design Number		Cable Diameter		Dimensions				Stud Size	Weight
Standard	Epoxy Coated	A		B	C	D	E
		Min mm	Max mm
370BA30L	370BB30L	105	111	133mm	175mm	100mm	150mm	M12	984g
370BA31L	370BB31L	111	117	139mm	175mm	120mm	150mm	M12	1020g
370BA32L	370BB32L	117	123	145mm	200mm	120mm	175mm	M12	1280g
370BA33L	370BB33L	123	130	152mm	200mm	120mm	175mm	M12	1302g
370BA34L	370BB34L	130	136	158mm	200mm	120mm	175mm	M12	1240g
370BA35L	370BB35L	136	142	164mm	210mm	120mm	185mm	M12	1274g
370BA36L	370BB36L	142	149	172mm	215mm	150mm	190mm	M12	1845g



Installing Aluminium Two Bolt Cable Cleats

The aluminium cable cleat should be mounted on suitable fixings. When mounting directly on channel, adapter plate Prysmian 380AG02 should be used.

EHV & HV

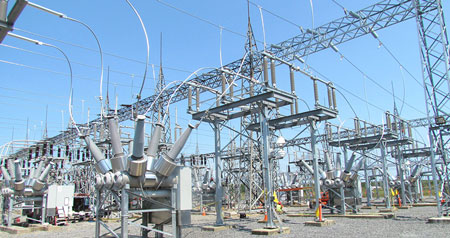

Extra High Voltage & High Voltage Substation Cables

Cable cleats with high short circuit cable retention for power transmission and distribution cables (132kV to 400kV) including clamping polymeric (XLPE), oil-filled cables and gas-pressure or gas-insulated cable systems - contact us for EHV cable jointing tools.

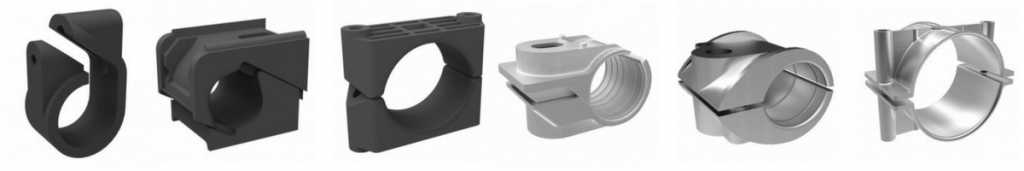

T&D distribute the complete range of Prysmian (BICON) cable cleats including multicleat, trefoil, claw, hook, single and two bolt cleats manufactured from plastic nylon (LSF), stainless steel and aluminium for LV-HV cable support and containment in short-circuit conditions.
