Prysmian BICON 370BA30L 370BB30L Cable Cleat, Aluminium 2 Bolt 105-111mm

EHV Cable Cleats

Prysmian BICON 370BA30L Cable Cleat

Aluminium 2 Bolt 105-111mm

Prysmian BICON 370BA30L Aluminium Two Bolt Cable Cleat Specifications:

• Epoxy coated version available (Prysmian Bicon 370BB30L)
• Suits HV-EHV cable diameters of 105-111mm
• Cable cleat dimensions 175mm (C) x 100mm (D) x 150mm (E)
• Stud size M12
• Prysmian Bicon 370BA30L weighs 984g

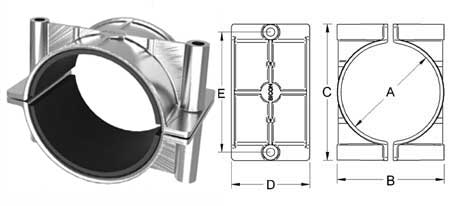

Pictured: Prysmian BICON 370BA30L 370BB30L Cable Cleat

Aluminium 2 Bolt 105-111mm



Prysmian BICON 370BA30L 370BB30L Cable Cleat

Aluminium 2 Bolt 105-111mm - Specification

Cable and Cleat Selection				Cable Cleat Details
Design Number		Cable Diameter		Dimensions				Stud Size	Weight
Standard	Epoxy Coated	A		B	C	D	E
		Min mm	Max mm
370BA30L	370BB30L	105	111	133mm	175mm	100mm	150mm	M12	984g



EHV & HV

Extra High Voltage & High Voltage Substation Cables

Cable cleats with high short circuit cable retention for power transmission and distribution cables (132kV to 400kV) including clamping polymeric (XLPE), oil-filled cables and gas-pressure or gas-insulated cable systems - contact us for EHV cable jointing tools.
