Prysmian BICON 370BA35L 370BB35L Cable Cleat, Aluminium 2 Bolt 136-142mm

EHV Cable Cleats

Prysmian BICON 370BA35L Cable Cleat

Aluminium 2 Bolt 136-142mm

Prysmian BICON 370BA35L Aluminium Two Bolt Cable Cleat Specifications:

• Epoxy coated version available (Prysmian Bicon 370BB35L)
• Suits HV-EHV cable diameters of 136-142mm
• Cable cleat dimensions 210mm (C) x 120mm (D) x 185mm (E)
• Stud size M12
• Prysmian Bicon 370BA35L weighs 1274g

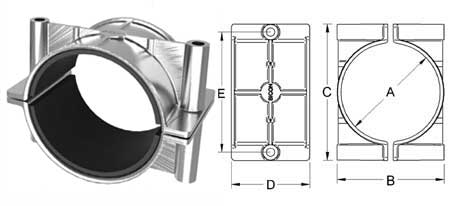

Pictured: Prysmian BICON 370BA35L 370BB35L Cable Cleat

Aluminium 2 Bolt 136-142mm



Prysmian BICON 370BA35L 370BB35L Cable Cleat

Aluminium 2 Bolt 136-142mm - Specification

Cable and Cleat Selection				Cable Cleat Details
Design Number		Cable Diameter		Dimensions				Stud Size	Weight
Standard	Epoxy Coated	A		B	C	D	E
		Min mm	Max mm
370BA35L	370BB35L	136	142	164mm	210mm	120mm	185mm	M12	1274g



EHV & HV

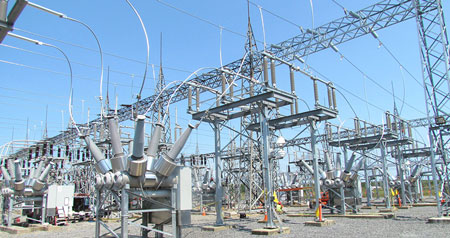

Extra High Voltage & High Voltage Substation Cables

Cable cleats with high short circuit cable retention for power transmission and distribution cables (132kV to 400kV) including clamping polymeric (XLPE), oil-filled cables and gas-pressure or gas-insulated cable systems - contact us for EHV cable jointing tools.
