Pfisterer HV-Connex Separable Connectors Size 6

Rated up to 170kV, 2500 Amps

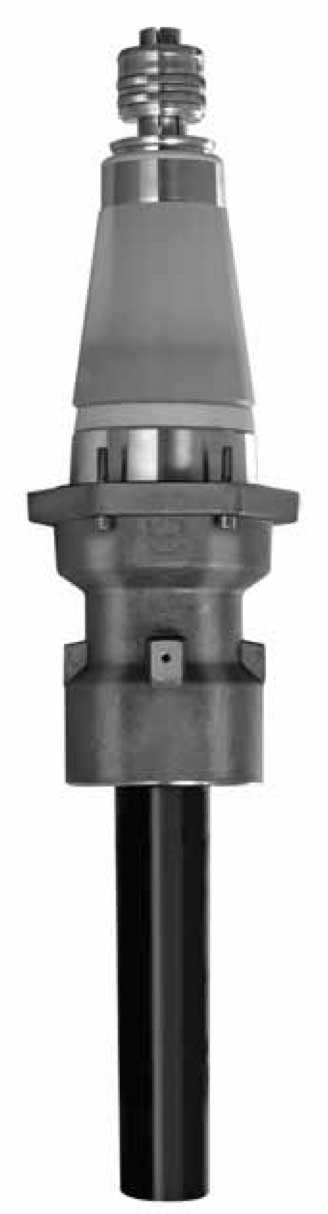

Pfisterer Size 6 HV-Connex Separable Connectors



Pfisterer HV-Connex Inner Cone Plugs Cable Terminations, Size 6, up to 170kV

The following options for the high voltage separable connectors are available:

  • Low temperature

The standard components are designed for a temperature down to -25°C. A special low temperature grease is used for ambient conditions involving temperatures below -25°C.

  • Offshore

Components with corresponding material properties are used for offshore applications.

  • Insulated Cable Shield

For insulated networks and usage of a Link Box. A touch proof system and flexibility were the main approach.



IMPORTANT: Pfisterer Connex Plugs should only be installed by Pfisterer Connex Trained Cable Jointers using correct approved Pfisterer Connex Tool Sets.

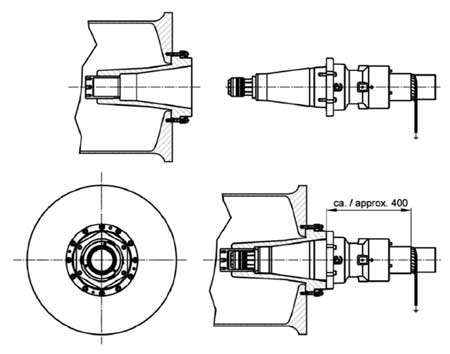

Size 6 Pfisterer Connex Plugs - High Voltage Inner Cone Cable Plug Terminations



Pfisterer Size 6 HV-Connex Separable Connector Specifications
Product No. Version Nominal Voltage Cross Section Range Conductor Diameter Diameter Over Insulation
Pfisterer 869999999 XXXX 2500A 240mm² - 2500mm² 15.3mm - 64.9mm 53mm - 110.5mm
