Pfisterer Connex Inner Cone Plugs Size 5, 145kV, 2500A 95-1600sqmm

Pfisterer Connex Inner Cone Plugs Pfisterer HV-Connex Inner Cone Plugs Cable Terminations

High Voltage Cable Terminations

Pfisterer HV-Connex Separable Connectors Size 5

Rated up to 145kV,  2500 Amps

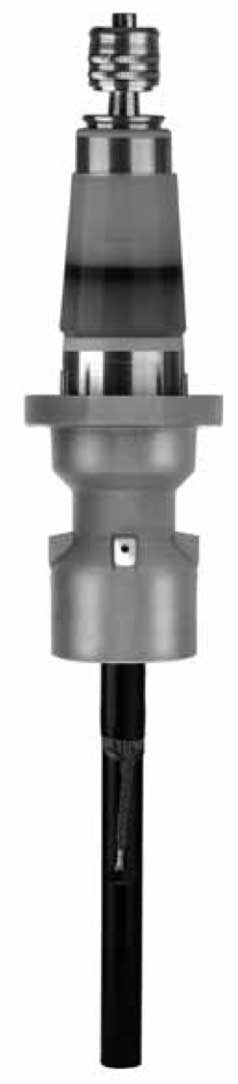

Pfisterer Size 5 HV-Connex Separable Connectors



Pfisterer HV-Connex Inner Cone Plugs Cable Terminations, Size 5, up to 145kV

The following options for the high voltage separable connectors are available:

  • Low temperature

The standard components are designed for a temperature down to -25°C. A special low temperature grease is used for ambient conditions involving temperatures below -25°C.

  • Offshore

Components with corresponding material properties are used for offshore applications.

  • Insulated Cable Shield

For insulated networks and usage of a Link Box. A touch proof system and flexibility were the main approach.



IMPORTANT: Pfisterer Connex Plugs should only be installed by Pfisterer Connex Trained Cable Jointers using correct approved Pfisterer Connex Tool Sets.

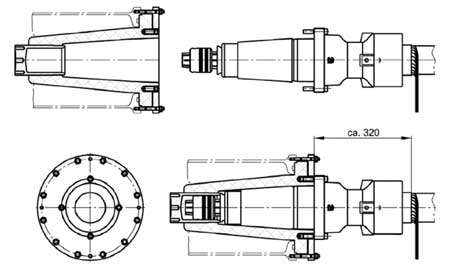

Size 5 Pfisterer Connex Plugs - High Voltage Inner Cone Cable Plug Terminations



Pfisterer Size 5 HV-Connex Separable Connector Specifications
Product No. Version Nominal Voltage Cross Section Range Conductor Diameter Diameter Over Insulation
Pfisterer 859999999 XXXX 2500A 95mm² - 1600mm² 9.3mm - 50.4mm 33mm - 76mm
