Transition Cable Joints - XLPE to PILC SWA 600/1000V & 3.3kV

Resin Cable Joints

Transition Cable Joints

XLPE to PILC SWA 600/1000V & 3.3kV

Transition cable joints are designed to joint multicore polymeric (XLPE) to paper (PILC) insulated, steel wire armoured (SWA) cables, 600/1000v and 3.3kV.

3M Scotchcast resin LA range transition cable joints with TX supplementary paper cable transition kits are suitable for both XLPE to paper and paper to paper cable joints.

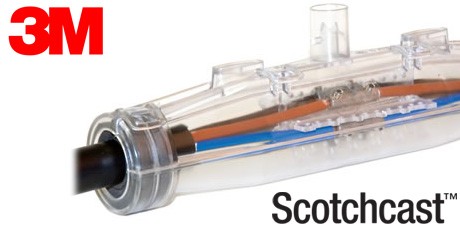

Pictured : 3M Scotchcast Transition Cable Joints - XLPE (polymeric) & PILC cables (paper) insulated cables can be jointed using 3M LA kits with additional TX module kits.

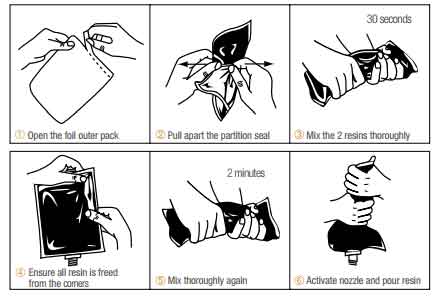

3M low voltage transition cable joints (XLPE to PILC) feature the Advanced Resin Delivery System for cable jointer safety with totally enclosed mixing and pouring - preventing cable jointer contact with hazardous jointing resins and reducing spillage.

Pictured : 3M Scotchcast Cable Joints - Advanced Resin Delivery

Transition cable joints are supplied with range taking mechanical shearbolt connectors for jointing imperial to metric cables and dissimilar copper to aluminium conductors - hydrocarbon resistant power cable joint kits are also available to transition joint EEMUA 133 XLPE lead sheathed to PILC cables for oil, gas and petrochemical sites.

The 3M Scotchcast resin range of LA cable joints can be modified to accomodate polymeric trifurcating cable jointing of BS5467 XLPE insulated multicore (SWA) to single core (AWA) power cables, 600/1000 volts.

3M Scotchcast transition cable joint kits are designed to joint multicore polymeric (XLPE) to paper (PILC) insulated, steel wire armoured (SWA) cables, 600/1000v and up to 3.3kV.

3M Scotchcast resin LA range transition cable jointing kits with TX supplementary paper cable transition kits are suitable for both XLPE to paper and paper to paper cable joints.

Pictured : BS6480 PILC Cable. Plain Annealed Copper Conductors, Paper Insulated, Lead Alloy Sheathed, Textile Compound Bedded, Steel Wire Armoured/PVC Sheathed.

Mass impregnated non-draining type. 600/1000 volts grade to BS6480. Sheath colour: Black.



Heat shrink transition cable joints are also available.

Transition Cable Joint XLPE PILC - 25-50sqmm - 4 Core- LA24+TX4

Transition Cable Joint XLPE PILC - 70-120sqmm - 4 Core -LA25+TX5

Transition Cable Joint XLPE PILC - 150-185sqmm - 4 Core- LA26+TX6

Transition Cable Joint XLPE PILC - 240-300sqmm - 4 Core -LA27+TX7

Low Voltage Transition Cable Joints - XLPE PILC - 3M LA Selection Table

3M Advanced Resin Delivery System - Safe Cable Jointing
