Zone 1, Zone 2 Hazardous Area Enclosure Junction Box - Abtech BPG9

 Abtech BPG9

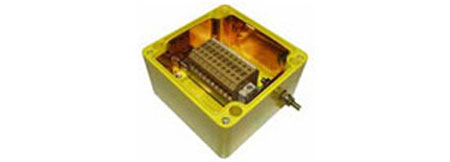

Abtech GRP BPG Electrical Enclosures & Junction Boxes

Zone 1, Zone 2 ATEX & IECEx Hazardous Area Rated





Abtech BPG9 GRP electrical enclosures are ATEX Certified for use in Zone 1 and Zone 2 hazardous areas – the terminal enclosures commonly used as junction boxes are manufactured from GRP and available in a full range of depths and sizes.

• ATEX EEx e (Zone 1 & Zone 2)
• ATEX EEx nA (Zone 2)
• ATEX EEx nR (Zone 2)

GRP provides excellent mechanical strength and life expectancy for superior junction box performance.

Abtech BPG GRP Enclosures & Junction Boxes, Features

• Wide operating temperature (-70 to +130 degrees Celsius)
• Ingress protection to IP67
• Fire resistant to IEC331
• UV resistant
• Hazardous area certified (Zone 1 & Zone 2)

Abtech BPG9 GRP Enclosures

Junction Box Specification

Abtech Part Reference	Enclosure Material	Width mm	Length mm	Weight g
Abtech BPG9 Enclosure	GRP	260	160	1170	Zone 1 & Zone 2
Abtech BPGC9 Enclosure	Carbon Loaded GRP	260	160	1170	Zone 1 & Zone 2

Abtech BPG9 GRP Electrical Enclosure Range Features

• Wide operating temperature (- 70°C to + 130°C)
• Ingress protection up to IP68
• Fire resistant to IEC331
• Impact resistant > 7Nm
• UV resistant enclosures
• Enclosures can be drilled and tapped to accommodate most thread forms
• Certification for use in Zone 1 and Zone 2 hazardous areas
• UL, CSA, ATEX and GOST approved electrical enclosures

​

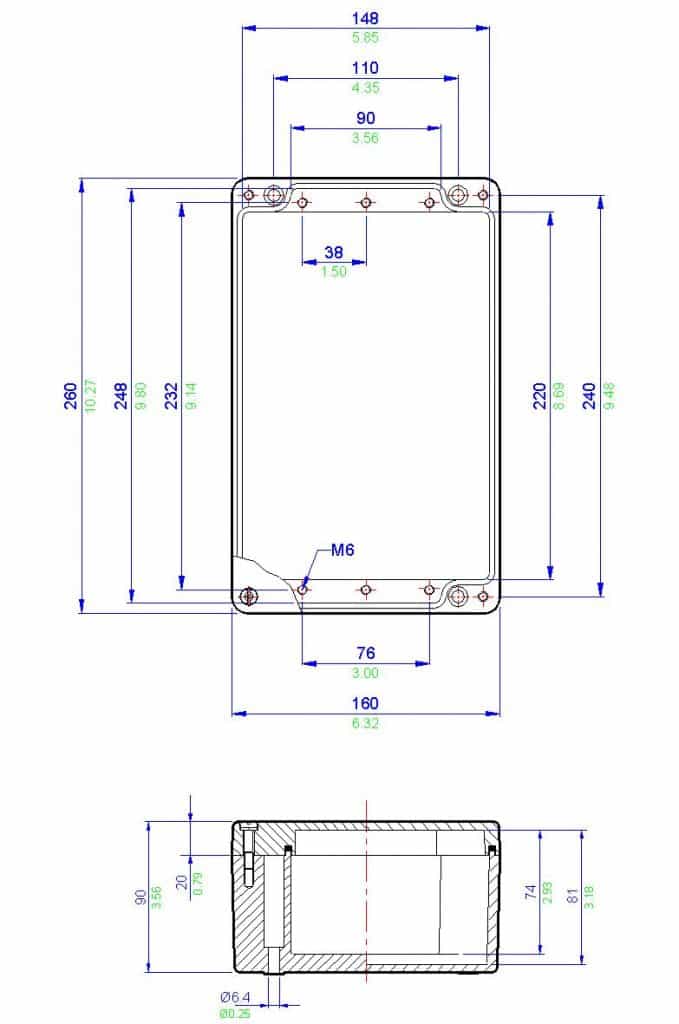

Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches

Zone 1, Zone 2 Junction Box - Electrical Enclosure - Abtech BPG9 260x160x90mm
