Abtech BPG2 Hazardous Area Enclosure Junction Box Zone 1, Zone 2

Abtech BPG2

Abtech GRP BPG Electrical Enclosures & Junction Boxes

Zone 1, Zone 2 ATEX & IECEx Hazardous Area Rated







Abtech BPG2 GRP electrical enclosures are ATEX Certified for use in Zone 1 and Zone 2 hazardous areas - the terminal enclosures commonly used as junction boxes are manufactured from GRP and available in a full range of depths and sizes.

• ATEX EEx e (Zone 1 & Zone 2)
• ATEX EEx nA (Zone 2)
• ATEX EEx nR (Zone 2)

GRP provides excellent mechanical strength and life expectancy for superior junction box performance.

Abtech BPG GRP Enclosures & Junction Boxes, Features

• Wide operating temperature (-70 to +130 degrees Celsius)
• Ingress protection to IP67
• Fire resistant to IEC331
• UV resistant
• Hazardous area certified (Zone 1 & Zone 2)

Abtech BPG2 GRP Enclosures

Junction Box Specification

Abtech Part Reference	Enclosure Material	Width mm	Length mm	Weight g
Abtech BPG2 Enclosure	GRP	110	75	230	Zone 1 & Zone 2
Abtech BPGC2 Enclosure	Carbon Loaded GRP	110	75	230	Zone 1 & Zone 2

Hazardous Area Certified GRP Electrical Enclosures & Junction Boxes

Abtech BPG GRP electrical enclosures and junction boxes carry global hazardous area certifications - ATEX EEx'e' to BSEN50019 (Zone 1 & 2), EEX'nA' to BSEN50021 (Zone 2) and NEMA 4X (CSA, UL & FM Class 1 Div 2).

Abtech BPG2 GRP Electrical Enclosure Range Features

• Wide operating temperature (- 70°C to + 130°C)
• Ingress protection up to IP68
• Fire resistant to IEC331
• Impact resistant > 7Nm
• UV resistant enclosures
• Enclosures can be drilled and tapped to accommodate most thread forms
• Certification for use in Zone 1 and Zone 2 hazardous areas
• UL, CSA, ATEX and GOST approved electrical enclosures

​

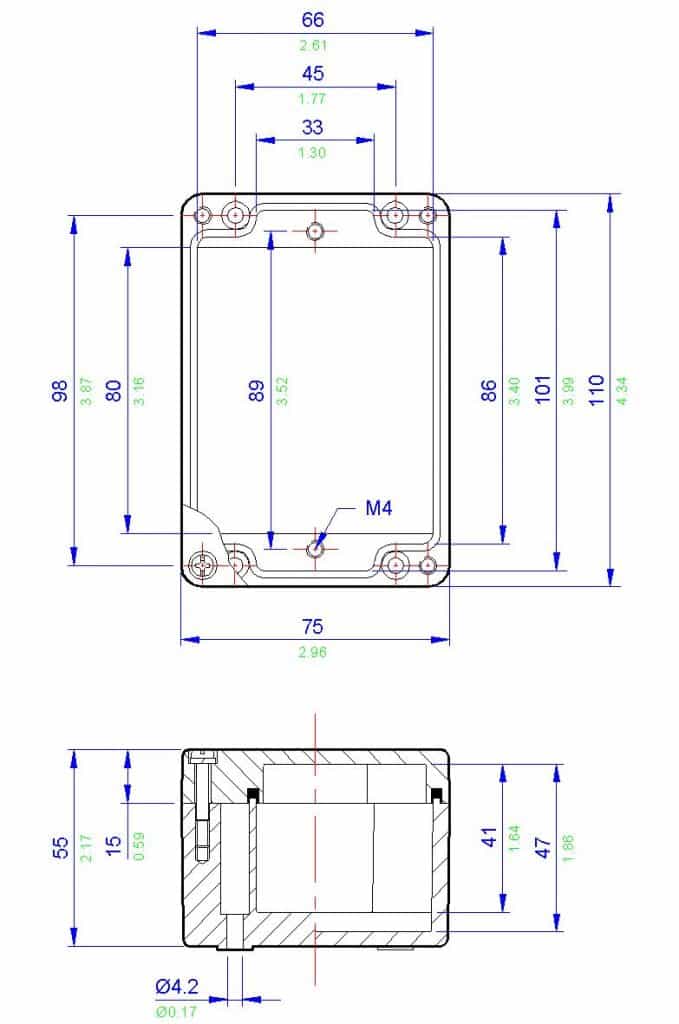

Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches

Zone 1, Zone 2 Junction Box - Electrical Enclosure - Abtech BPG2 110x75x55mm
