Kingsmill earth bars are manufactured from hard drawn copper bar to BS 2874 C101 C103. Standard earth bar fittings are M10 x 35mm hexagonal sets c/w 2No M10 full nuts with 1No M10 flat washer.

Earth bars are available in a range of lengths consisting of a 50mm wide x 6mm thick copper bar with M10 termination screws. Earth bars are an efficient and convenient way of providing a common earth point.

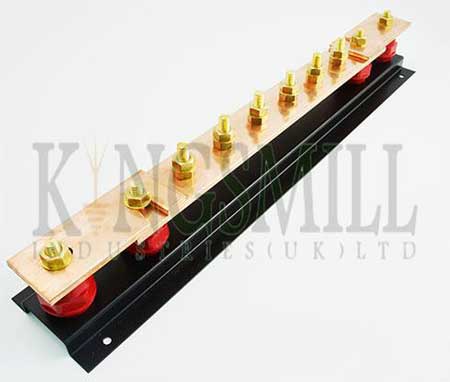

Pictured: Kingsmill Copper Earth Bars (Conforms to BS 2874-C101/C103)

Earth bar insulators are reinforced polyester with brass inserts. Earth bars can be supplied with single or twin disconnection links to offer a temporary break in the connection to earth allowing the testing of an earth rod whilst disconnecting from the earthing and lightning protection system.

Earth bars can be produced to customer specification - T&D UK stock the complete range of earth bars from 6 Way to 30 Way.

Kingsmill 6 Way Copper Earth Bars - Product Range

Earth Bar Part Ref	Dimensions	Description	Weight
EBAR6	300mm x 90mm x 90mm	6 Way Earth Bar - Standard	1.70kg
EBAR6-1	450mm x 90mm x 90mm	6 Way Earth Bar With Single Disconnecting Link	2.80kg
EBAR6-2	800mm x 90mm x 90mm	6 Way Earth Bar With Twin Disconnecting Link	4.60kg
EBAR8	450mm x 90mm x 90mm	8 Way Earth Bar - Standard	2.36kg
EBAR8-1	650mm x 90mm x 90mm	8 Way Earth Bar With Single Disconnecting Link	3.64kg
EBAR8-2	800mm x 90mm x 90mm	8 Way Earth Bar With Twin Disconnecting Link	4.68kg
EBAR10	450mm x 90mm x 90mm	10 Way Earth Bar - Standard	2.44kg
EBAR10-1	650mm x 90mm x 90mm	10 Way Earth Bar With Single Disconnecting Link	3.74kg
EBAR10-2	900mm x 90mm x 90mm	10 Way Earth Bar With Twin Disconnecting Link	5.14kg
EBAR12	520mm x 90mm x 90mm	12 Way Earth Bar - Standard	2.77kg
EBAR12-1	800mm x 90mm x 90mm	12 Way Earth Bar With Single Disconnecting Link	4.41kg
EBAR12-2	1050mm x 90mm x 90mm	12 Way Earth Bar With Twin Disconnecting Link	5.24kg
EBAR14	650mm x 90mm x 90mm	14 Way Earth Bar - Standard	3.59kg
EBAR14-1	800mm x 90mm x 90mm	14 Way Earth Bar With Single Disconnecting Link	4.49kg
EBAR14-2	1050mm x 90mm x 90mm	14 Way Earth Bar With Twin Disconnecting Link	6.04kg
EBAR16	650mm x 90mm x 90mm	16 Way Earth Bar - Standard	4.21kg
EBAR16-1	900mm x 90mm x 90mm	16 Way Earth Bar With Single Disconnecting Link	4.93kg
EBAR16-2	1250mm x 90mm x 90mm	16 Way Earth Bar With Twin Disconnecting Link	7.00kg
EBAR18	800mm x 90mm x 90mm	18 Way Earth Bar - Standard	4.31kg
EBAR18-1	1050mm x 90mm x 90mm	18 Way Earth Bar With Single Disconnecting Link	5.58kg
EBAR18-2	1250mm x 90mm x 90mm	18 Way Earth Bar With Twin Disconnecting Link	7.34kg
EBAR20	800mm x 90mm x 90mm	20 Way Earth Bar - Standard	4.72kg
EBAR20-1	1050mm x 90mm x 90mm	20 Way Earth Bar With Single Disconnecting Link	5.68kg
EBAR20-2	1250mm x 90mm x 90mm	20 Way Earth Bar With Twin Disconnecting Link	8.45kg
EBAR22	900mm x 90mm x 90mm	22 Way Earth Bar - Standard	4.82kg
EBAR22-1	1250mm x 90mm x 90mm	22 Way Earth Bar With Single Disconnecting Link	6.65kg
EBAR22-2	1450mm x 90mm x 90mm	22 Way Earth Bar With Twin Disconnecting Link	8.00kg
EBAR24	1050mm x 90mm x 90mm	24 Way Earth Bar - Standard	5.49kg
EBAR24-1	1250mm x 90mm x 90mm	24 Way Earth Bar With Single Disconnecting Link	6.75kg
EBAR24-2	1450mm x 90mm x 90mm	24 Way Earth Bar With Twin Disconnecting Link	8.18kg
EBAR26	1050mm x 90mm x 90mm	26 Way Earth Bar - Standard	5.59kg
EBAR26-1	1250mm x 90mm x 90mm	26 Way Earth Bar With Single Disconnecting Link	6.55kg
EBAR26-2	1600mm x 90mm x 90mm	26 Way Earth Bar With Twin Disconnecting Link	8.79kg
EBAR28	1250mm x 90mm x 90mm	28 Way Earth Bar - Standard	6.55kg
EBAR28-1	1450mm x 90mm x 90mm	28 Way Earth Bar With Single Disconnecting Link	7.66kg
EBAR28-2	1600mm x 90mm x 90mm	28 Way Earth Bar With Twin Disconnecting Link	8.89kg
EBAR30	1250mm x 90mm x 90mm	30 Way Earth Bar - Standard	6.65kg
EBAR30-1	1450mm x 90mm x 90mm	30 Way Earth Bar With Single Disconnecting Link	7.76kg
EBAR30-2	1700mm x 90mm x 90mm	30 Way Earth Bar With Twin Disconnecting Link	9.37kg

All available earth bars available with optional single disconnection links or twin disconnection links - contact T&D Sales for competitive pricing and ex stock delivery for Kingsmill earth bars.

Earth Bars - Kingsmill Copper Earth Bars (6 to 30 Way)
