H07RN-F Cable Joints

H07RN-F cables are designed to provide high flexibility and have the capacity to withstand weather, oils/greases, mechanical and thermal stresses.

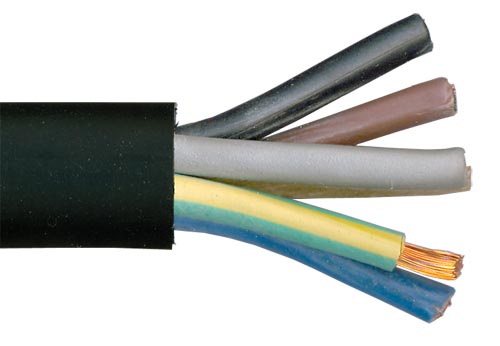

Pictured: H07RN-F Cable Joints

H07RN-F cable applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams.

Also for use in drainage and water treatment, cold environments and severe industrial environments.

• Standards: BS7919, CENELEC HD22.4 S4
• Conductor: Class 5 flexible plain copper to BS EN 60228:2005 (previously BS6360)
• Insulation: EPR (Ethylene Propylene Rubber) Type EI4 to BS7655
• Sheath: PCP (Polychloroprene) Type EM2 to BS7655
• Sheath Colour: Black
• Voltage Rating: 450/750V
• Temperature Rating: Conductor operating temperature -30°C to +60°C (85°C max)
• Minimum Bending Radius: Up to 25mm²: 6 x overall diameter, Above 25mm²: 8 x overall diameter

Core Identification:

• 2 Cores: Blue, Brown
• 3 Cores: Green/Yellow, Blue, Brown
• 4 Cores: Green/Yellow, Brown, Black, Grey
• 5 Cores: Green/Yellow, Blue, Brown, Black, Grey
• 6 Cores and above: Black with White numerals, Green/Yellow

3M Scotchcast cable jointing kits are suitable for the jointing of H07RN-F to BS7919 unarmoured cables, including cables joints installed in Zone 1 and Zone 2 hazardous areas.
