Unarmoured Power Cable Joints for Hazardous Areas (Zones 1 & 2) - 3M Scotchcast 92NAU

3M Cable Joint Kit

Unarmoured Cable Joint Kits for Hazardous Areas

3M 92NAU Cable Joint Kits

3M Joints for Unarmoured Cables in Hazardous Areas

ATEX3M Scotchcast 92NAU hazardous area (Zone 1 & 2) power cable jointing kits are suitable for XLPE and EPR insulated unarmoured power cables, 0.6/1kV.

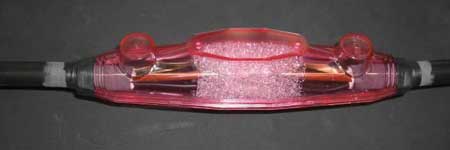

Pictured: 3M 92NAU Unarmoured Power Cable Joint Kits

3M 92NAU Unarmoured Power Cable Joint Kits

3M 92NAU cable jointing kits are suitable for indoor, outdoor, underground direct burial and submerged installations - hydrocarbon resistant, chemical resistant, halogen free and flame retardant low voltage joint kits.

3M Scotchcast No. 1402FR resin cable joint kits are flame retardant with excellent long term resistance against hydrocarbons - suitable for areas where there is a danger of gas, oil, sewage or chemical spillage including Zones 1 & 2 Hazardous Areas.

3M 92NAU resin cable jointing kits are halogen free and flame retardant for low voltage power cable jointing.

3M 92NAU Unarmoured Power Cable Joint Kits - Features

  • Resin 1402FR in transparent two chamber bags with integrated closed mixed system and an opener for easy opening and pouring
  • Two part mould body with snap fit closing system for quick and easy handling
  • Transparent flame retardant mould body for easy control of connector distances
  • Flame retardant according to UL94 V0
  • Chemical resistant, especially against hydro carbons
  • Spacer web to ensure the distance between connectors and the mould body
  • Closure cap to prevent any pollution

3M 92NAU Unarmoured Power Cable Joint Kits - Kit Contents

  • Transparent PC mould body with closure cap
  • Scotchcast 1402FR resin bag with closed mix system and separate opener
  • Phase spacer web
  • Scotch 23 electrical insulation tape
  • Abrasive strip
  • Finger gloves according to EN 394
  • Detailed instruction
3M 92NAU Unarmoured Power Cable Joint Kits - Product Range
Part Ref Cross Sectional Area Cable Diameter
92-NA-1-U 1.5-10mm² 8-22mm
92-NA-2-U 16-25mm² 14-30mm
92-NA-3-U 25-50mm² 23-35mm
92-NA-4-U 50-95mm² 28-47mm
92-NA-5-U 95-150mm² 33-55mm
92-NA-6-U 150-240mm² 45-70mm
